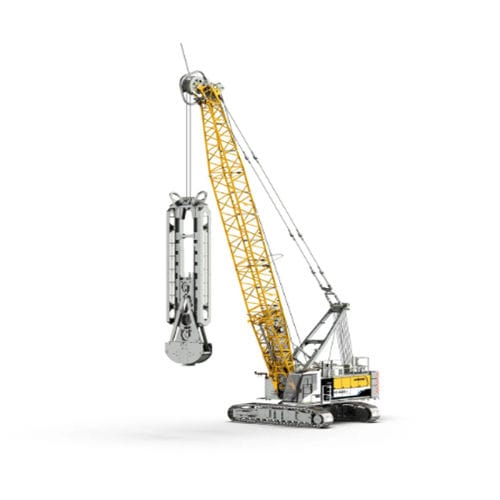

Boom crane HS 8100.2

crawlerhandlinglifting

Overview
The all-electric concept of the HS 8100.2 dual power provides flexible drive and charging variants. The machine's core is an integrated battery that powers the entire drive system. Charging and drive modes include full site power (125 A), mixed supply (32 A or 64 A combined with an integrated diesel generator) and diesel-only operation when no charging infrastructure is available. The integrated diesel generator requires no additional space. The battery also enables autonomous assembly/disassembly and limited self-travel of approximately 400 metres.

Applications

• Mechanical slurry wall grab / slurry wall installation with grab
• Material handling grab (grab operation)
• Dragline bucket operation
• Lifting operations
• Dredging and excavation of bulk materials (e.g., gravel, sand)

Key product attributes (summary)

• Max. lifting capacity: 100 t
• Engine power: 450 kW
• Max. winch line pull: 2 x 295 kN
• Max. main boom: 59.00 m
• Boom length in grab operation: 32.00 m
• Boom length in dragline operation: 29.00 m

Technical data
Max. lifting capacity: 100 t
Min. transport width: 3,500 mm
Min. transport height: 3,180 mm
Min. transport weight: 40 t
Engine power: 450 kW
Max. winch line pull: 2 x 295 kN
Max. main boom: 59.00 m
Boom length in grab operation: 32.00 m
Boom length in dragline operation: 29.00 m
Operating weight: 89 t
Travel speed: 1.28 km/h
Max. depth (dragline operation): 15.00 m
Max. capacity of dragline bucket: 4.60 m³
Max. capacity of clamshell: 7.00 m³
At radius: 12.00 m

Characteristics / technical specifications

• Drive concept: integrated battery for all-electric operation with options to combine grid power and an integrated diesel generator
• Charging/drive modes: full site power (125 A); mixed supply (32 A / 64 A + diesel generator); diesel-only mode
• Integrated diesel generator requires no additional installation space
• Autonomous functions: assembly/disassembly capability and self-travel up to approx. 400 m
• Main use cases: slurry wall installation (grab), material handling, dragline dredging/excavation, lifting
• Nominal engine power: 450 kW; max. lifting capacity: 100 t
