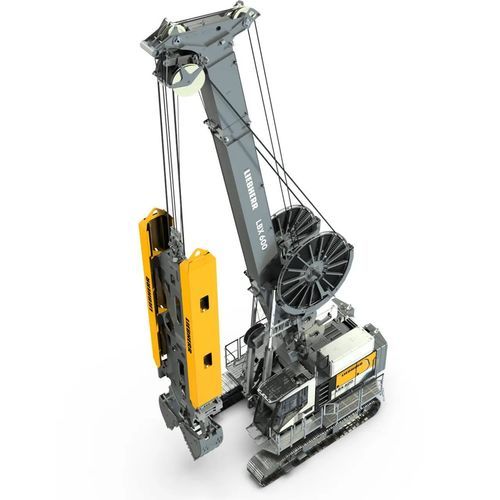

Mechanical drilling rig LBX 600 UNPLUGGED

electricdiaphragm wallfor civil engineering

Overview
The carrier machine LBX 600 unplugged is designed for slurry wall (diaphragm wall) construction on urban and noise-sensitive jobsites. The battery-powered "unplugged" version produces no local exhaust and enables operation in confined spaces. The base carrier can be transported as a single unit. A modular box-boom system allows three machine configurations and high jobsite flexibility. The LBX 600 accepts mechanical or hydraulic grabs and chisel attachments.

Key features

• Compact carrier suitable for confined and urban jobsites
• Zero-emission electric drive — no local exhaust fumes
• Battery-powered unplugged operation; battery charged from conventional jobsite electrical supply
• Option for plugged-in socket operation — run while connected or recharge within hours
• Modular box boom system offering three machine versions and flexible reach
• Compatible with hydraulic or mechanical slurry wall grabs and chisel attachments
• Two powerful free-fall winches for high line pull in grab and recovery operations
• Slim / telescopic undercarriage for simplified transport and set-up

Attachments (example)

• Slurry wall grab HSG 5-18 C/L — wall thickness: 500–1,800 mm
• HSG 5-18 C/L — jaw opening width: 2,500–3,600 mm
• HSG 5-18 C/L — max. closing force at teeth: 594 kN

Applications

• Slurry wall installation with clamshell/grab for excavation of slurry wall panels

Technical data (table)
Max. working depth — 80 m
Max. grab weight, full — 30 t
Max. pull force in grab operation (dual-winch operation) — 450 kN
Max. pull force in recovery mode (dual-winch operation) — 600 kN
Drive — Electric (zero emission)
Engine power — 390 kW
System performance — 390 kW
Max. winch line pull — 2 x 300 kN
Battery charging time — 5.0 h
Battery capacity — 4 h
Min. transport width — 3,000 mm
Min. transport height — 3,600 mm
Operating weight — 72.5 t

Characteristics / Technical specifications

• Max. working depth: 80 m
• Max. grab weight, full: 30 t
• Max. pull force in grab operation (dual-winch): 450 kN
• Max. pull force in recovery mode (dual-winch): 600 kN
• Drive: Electric (zero emission)
• Engine power: 390 kW
• System performance: 390 kW
• Max. winch line pull: 2 x 300 kN
• Battery charging time: 5.0 h
• Battery capacity: 4 h
• Min. transport width: 3,000 mm
• Min. transport height: 3,600 mm
• Operating weight: 72.5 t
• Attachment example (HSG 5-18 C/L) — Wall thickness: 500–1,800 mm; Jaw opening width: 2,500–3,600 mm; Max. closing force at teeth: 594 kN
