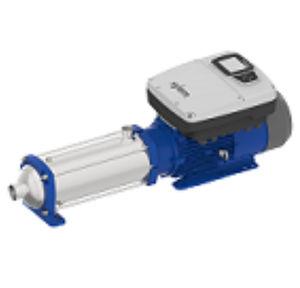

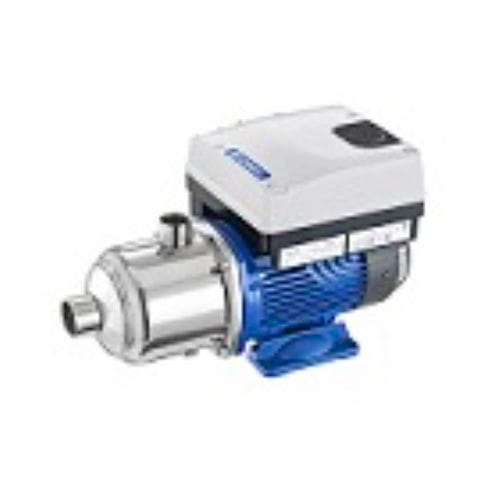

Water pump E-HME

electricmetal

Series
The e-HME series CAD center catalogue listing. This page provides CAD, BIM and dimensional drawings for multiple e-HME pump variants (product codes) with their core technical attributes: Size, Phase, eSM Power Supply and Nominal Power.

Product table (excerpt of variants and technical info)
Product name | Additional info
10HME01S07M02 | Size: 10HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.75 kW
10HME01S07T05 | Size: 10HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.75 kW
10HME02S11M02 | Size: 10HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.1 kW
10HME02S11T05 | Size: 10HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.1 kW
10HME03S15M02 | Size: 10HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.5 kW
10HME03S15T05 | Size: 10HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.5 kW
10HME04S22T04 | Size: 10HM; Phase: 3; eSM Power Supply: 04 = 3x380-460 V; Nominal Power: 2.2 kW
15HME01S11M02 | Size: 15HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.1 kW
15HME01S11T05 | Size: 15HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.1 kW
15HME02S15M02 | Size: 15HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.5 kW
15HME02S15T05 | Size: 15HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.5 kW
15HME03S22T04 | Size: 15HM; Phase: 3; eSM Power Supply: 04 = 3x380-460 V; Nominal Power: 2.2 kW
1HME05S03M02 | Size: 1HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.37 kW
1HME05S03T05 | Size: 1HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.37 kW
1HME08S05M02 | Size: 1HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.55 kW
1HME08S05T05 | Size: 1HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.55 kW
1HME11S07M02 | Size: 1HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.75 kW
1HME11S07T05 | Size: 1HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.75 kW
1HME15S11M02 | Size: 1HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.1 kW
1HME15S11T05 | Size: 1HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.1 kW
1HME17S15M02 | Size: 1HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.5 kW
1HME17S15T05 | Size: 1HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.5 kW
3HME03S03M02 | Size: 3HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.37 kW
3HME03S03T05 | Size: 3HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.37 kW
3HME05S05M02 | Size: 3HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.55 kW
3HME05S05T05 | Size: 3HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.55 kW
3HME07S07M02 | Size: 3HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.75 kW
3HME07S07T05 | Size: 3HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.75 kW
3HME09S11M02 | Size: 3HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.1 kW
3HME09S11T05 | Size: 3HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.1 kW
3HME12S15M02 | Size: 3HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.5 kW
3HME12S15T05 | Size: 3HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.5 kW
3HME14S22T04 | Size: 3HM; Phase: 3; eSM Power Supply: 04 = 3x380-460 V; Nominal Power: 2.2 kW
5HME02S03M02 | Size: 5HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.37 kW
5HME02S03T05 | Size: 5HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.37 kW
5HME03S05M02 | Size: 5HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.55 kW
5HME03S05T05 | Size: 5HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.55 kW
5HME04S07M02 | Size: 5HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.75 kW
5HME04S07T05 | Size: 5HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.75 kW
5HME06S11M02 | Size: 5HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.1 kW
5HME06S11T05 | Size: 5HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.1 kW
5HME08S15M02 | Size: 5HM; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.5 kW
5HME08S15T05 | Size: 5HM; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.5 kW
5HME10S22T04 | Size: 5HM; Phase: 3; eSM Power Supply: 04 = 3x380-460 V; Nominal Power: 2.2 kW

Available document types (per variant)

• 2D (.dxf)

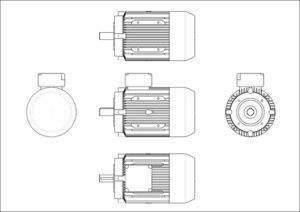

• 2D (.wmf) dimensional drawings
• 3D (.stp)
• BIM (Revit) (.rfa)
• BIM (IFC) (.ifc)

Notes
Each product variant listed includes downloadable CAD files (2D/3D), BIM packages and preview images. No pricing or EAN codes are present on this page.
