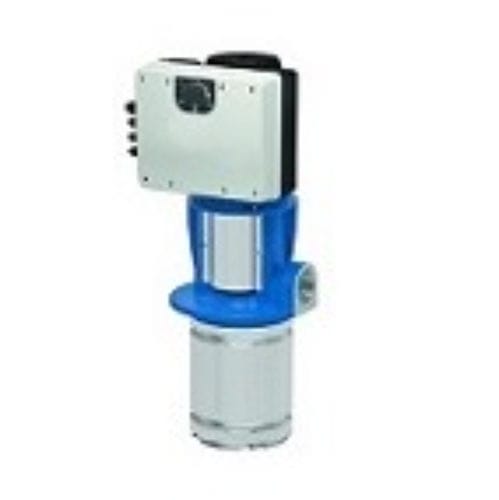

Water pump e-SVIE

with electric motormetal

Overview
The page is a CAD center listing for the e-SVIE series, showing available 2D and 3D CAD files and previews for each variant. The listing summarizes product codes, mechanical size, electrical phase, eSM power supply code, rated power and product version to help engineers select compatible components.

Product variants (each line = Product code — Additional info)
10SVIE01-02CG005PM02 — Size: 10SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.55 kW; Product version: Coupling
10SVIE01-02CG005PT05 — Size: 10SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.55 kW; Product version: Coupling
10SVIE02-02CG007PM02 — Size: 10SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.75 kW; Product version: Coupling
10SVIE02-02CG007PT05 — Size: 10SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.75 kW; Product version: Coupling
10SVIE02-02CG011PM02 — Size: 10SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.1 kW; Product version: Coupling
10SVIE02-02CG011PT05 — Size: 10SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.1 kW; Product version: Coupling
10SVIE03-03CG015PM02 — Size: 10SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.5 kW; Product version: Coupling
10SVIE03-03CG015PT05 — Size: 10SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.5 kW; Product version: Coupling
10SVIE04-04CG022PT04 — Size: 10SVI; Phase: 3; eSM Power Supply: 04 = 3x380-460 V; Nominal Power: 2.2 kW; Product version: Coupling
15SVIE01-02CG007PM02 — Size: 15SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.75 kW; Product version: Coupling
15SVIE01-02CG007PT05 — Size: 15SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.75 kW; Product version: Coupling
15SVIE02-02CG015PM02 — Size: 15SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.5 kW; Product version: Coupling
15SVIE02-02CG015PT05 — Size: 15SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.5 kW; Product version: Coupling
15SVIE02-02CG022PT04 — Size: 15SVI; Phase: 3; eSM Power Supply: 04 = 3x380-460 V; Nominal Power: 2.2 kW; Product version: Coupling
1SVIE05-05CG003PM02 — Size: 1SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.37 kW; Product version: Coupling
1SVIE05-05CG003PT05 — Size: 1SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.37 kW; Product version: Coupling
1SVIE05-05EG003PM02 — Size: 1SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.37 kW; Product version: Extended Shaft
1SVIE05-05EG003PT05 — Size: 1SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.37 kW; Product version: Extended Shaft
1SVIE08-08CG005PM02 — Size: 1SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.55 kW; Product version: Coupling
1SVIE08-08CG005PT05 — Size: 1SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.55 kW; Product version: Coupling
1SVIE08-08EG005PM02 — Size: 1SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.55 kW; Product version: Extended Shaft
1SVIE08-08EG005PT05 — Size: 1SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.55 kW; Product version: Extended Shaft
1SVIE11-11CG007PM02 — Size: 1SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.75 kW; Product version: Coupling
1SVIE11-11CG007PT05 — Size: 1SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.75 kW; Product version: Coupling
1SVIE11-11EG007PM02 — Size: 1SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.75 kW; Product version: Extended Shaft
1SVIE11-11EG007PT05 — Size: 1SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.75 kW; Product version: Extended Shaft
1SVIE15-15CG011PM02 — Size: 1SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.1 kW; Product version: Coupling
1SVIE15-15CG011PT05 — Size: 1SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.1 kW; Product version: Coupling
1SVIE15-15EG011PM02 — Size: 1SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.1 kW; Product version: Extended Shaft
1SVIE15-15EG011PT05 — Size: 1SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.1 kW; Product version: Extended Shaft
1SVIE20-20CG015PM02 — Size: 1SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.5 kW; Product version: Coupling
1SVIE20-20CG015PT05 — Size: 1SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.5 kW; Product version: Coupling
1SVIE26-26CG022PT04 — Size: 1SVI; Phase: 3; eSM Power Supply: 04 = 3x380-460 V; Nominal Power: 2.2 kW; Product version: Coupling
22SVIE01-02CG007PM02 — Size: 22SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.75 kW; Product version: Coupling
22SVIE01-02CG007PT05 — Size: 22SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.75 kW; Product version: Coupling
22SVIE01-02CG011PM02 — Size: 22SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.1 kW; Product version: Coupling
22SVIE01-02CG011PT05 — Size: 22SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.1 kW; Product version: Coupling
22SVIE02-02CG015PM02 — Size: 22SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 1.5 kW; Product version: Coupling
22SVIE02-02CG015PT05 — Size: 22SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 1.5 kW; Product version: Coupling
22SVIE02-02CG022PT04 — Size: 22SVI; Phase: 3; eSM Power Supply: 04 = 3x380-460 V; Nominal Power: 2.2 kW; Product version: Coupling
3SVIE03-03CG003PM02 — Size: 3SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.37 kW; Product version: Coupling
3SVIE03-03CG003PT05 — Size: 3SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.37 kW; Product version: Coupling
3SVIE03-03EG003PM02 — Size: 3SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.37 kW; Product version: Extended Shaft
3SVIE03-03EG003PT05 — Size: 3SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.37 kW; Product version: Extended Shaft
3SVIE05-05CG005PM02 — Size: 3SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.55 kW; Product version: Coupling
3SVIE05-05CG005PT05 — Size: 3SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.55 kW; Product version: Coupling
3SVIE05-05EG005PM02 — Size: 3SVI; Phase: 1; eSM Power Supply: 02 = 1x208-240 V; Nominal Power: 0.55 kW; Product version: Extended Shaft
3SVIE05-05EG005PT05 — Size: 3SVI; Phase: 3; eSM Power Supply: 05 = 3x208-240/380-460 V; Nominal Power: 0.55 kW; Product version: Extended Shaft

Available document/CAD formats per product
For each product the listing indicates availability of 2D dimension drawings (.dxf), 2D vector drawings (.wmf), 3D STEP files (.stp) and visual previews (2D PNG preview and interactive 3D preview). Files are provided per variant to support integration into assembly and layout workflows.

Technical specifications

• Series: e-SVIE
• Sizes shown: 10SVI, 15SVI, 1SVI, 22SVI, 3SVI (as present in the listing)
• Phases: 1 and 3
• eSM Power Supply codes: 02 = 1x208-240 V; 04 = 3x380-460 V; 05 = 3x208-240/380-460 V
• Nominal power options observed: 0.37 kW; 0.55 kW; 0.75 kW; 1.1 kW; 1.5 kW; 2.2 kW
• Product versions observed: Coupling; Extended Shaft
• Document/CAD formats available: 2D (.dxf), 2D (.wmf), 3D (.stp), 2D preview (PNG), 3D preview (browser view)
