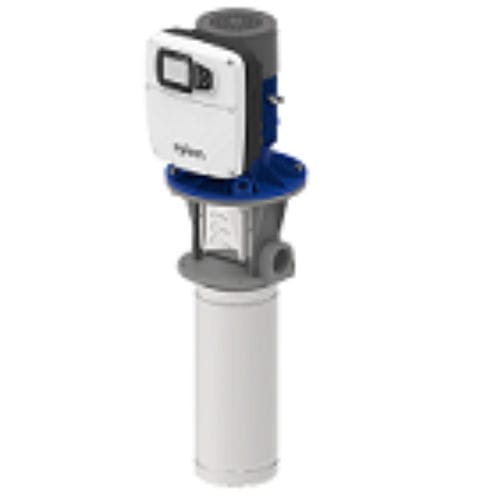

Water pump E-SVI HYDROVAR X

with electric motormetal

Series
e-SVI hydrovar X

Overview

• Manufacturer: Lowara (a Xylem brand).
• CAD resources available for multiple product variants within the e-SVI hydrovar X series: downloadable 2D drawings (.dxf), downloadable 3D models (.stp), and online previews (2D preview image and 3D preview).

Products table
15SVIX07-07CG075C | Nominal Power: 7,5 kW | Size: 15SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
15SVIX09-09CG110C | Nominal Power: 11 kW | Size: 15SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
15SVIX12-12CG150D | Nominal Power: 15 kW | Size: 15SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
22SVIX02-02CG030B | Nominal Power: 3 kW | Size: 22SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
22SVIX03-03CG040B | Nominal Power: 4 kW | Size: 22SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
22SVIX04-04CG055B | Nominal Power: 5,5 kW | Size: 22SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
22SVIX05-05CG075C | Nominal Power: 7,5 kW | Size: 22SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
22SVIX07-07CG110C | Nominal Power: 11 kW | Size: 22SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
22SVIX10-10CG150D | Nominal Power: 15 kW | Size: 22SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
22SVIX12-12CG185D | Nominal Power: 18,5 kW | Size: 22SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
33SVIX01-01S030B | Nominal Power: 3 kW | Size: 33SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
33SVIX02-02S075C | Nominal Power: 7,5 kW | Size: 33SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
33SVIX03-03S110C | Nominal Power: 11 kW | Size: 33SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
33SVIX04-04S150D | Nominal Power: 15 kW | Size: 33SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
33SVIX05-05S185D | Nominal Power: 18,5 kW | Size: 33SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
33SVIX06-06S220D | Nominal Power: 22 kW | Size: 33SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
3SVIX21-21CG030B | Nominal Power: 3 kW | Size: 3SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
46SVIX01-01S055B | Nominal Power: 5,5 kW | Size: 46SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
46SVIX02-02S110B | Nominal Power: 11 kW | Size: 46SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
46SVIX03-03S150D | Nominal Power: 15 kW | Size: 46SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
46SVIX04-04S185D | Nominal Power: 18,5 kW | Size: 46SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
46SVIX05-05S220D | Nominal Power: 22 kW | Size: 46SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
5SVIX15-15CG030B | Nominal Power: 3 kW | Size: 5SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
5SVIX19-19CG040B | Nominal Power: 4 kW | Size: 5SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
5SVIX23-23CG055B | Nominal Power: 5,5 kW | Size: 5SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
66SVIX01-01S055B | Nominal Power: 5,5 kW | Size: 66SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
66SVIX02-02S110B | Nominal Power: 11 kW | Size: 66SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
66SVIX03-03S185D | Nominal Power: 18,5 kW | Size: 66SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
66SVIX04-04S220D | Nominal Power: 22 kW | Size: 66SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
92SVIX01-01S075C | Nominal Power: 7,5 kW | Size: 92SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
92SVIX02-02S150D | Nominal Power: 15 kW | Size: 92SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
92SVIX03-03S220D | Nominal Power: 22 kW | Size: 92SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
10SVIX06-06CG030B | Nominal Power: 3 kW | Size: 10SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
10SVIX08-08CG040B | Nominal Power: 4 kW | Size: 10SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
10SVIX11-11CG055B | Nominal Power: 5,5 kW | Size: 10SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
10SVIX15-15CG075C | Nominal Power: 7,5 kW | Size: 10SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
15SVIX02-02CG030B | Nominal Power: 3 kW | Size: 15SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
15SVIX03-03CG040B | Nominal Power: 4 kW | Size: 15SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview
15SVIX05-05CG055B | Nominal Power: 5,5 kW | Size: 15SVI | Documents: 2D (.dxf); 3D (.stp); 2D Preview; 3D Preview

Technical specifications

• Series name: e-SVI hydrovar X.
• Manufacturer / Brand: Lowara (Xylem).
• Available sizes (as listed on page): 3SVI, 5SVI, 10SVI, 15SVI, 22SVI, 33SVI, 46SVI, 66SVI, 92SVI.
• Nominal power options (as listed): 3 kW; 4 kW; 5,5 kW; 7,5 kW; 11 kW; 15 kW; 18,5 kW; 22 kW.
• CAD/document formats provided: 2D (.dxf) packages and 3D (.stp) packages for each product variant; 2D preview images and 3D preview views are provided for visualization.
• Each product row indicates the product code, its nominal power, size and the availability of CAD downloads and previews.
