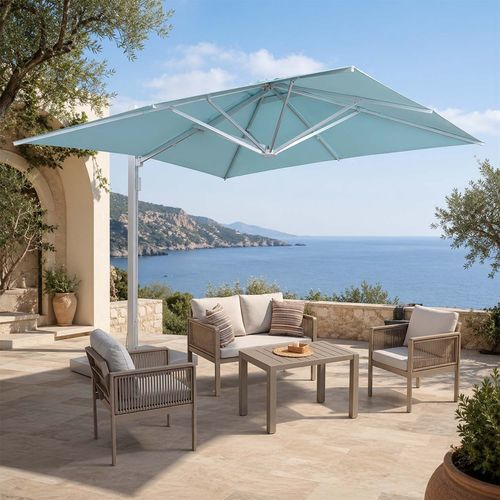

Square parasol CYGNUS

side postcantileveraluminum

Product overview
Cygnus provides nine square metres of shade with no centre pole: the pole is positioned to the side and the canopy is suspended from a horizontal arm. The parasol opens and closes assisted by a push-open gas piston for effortless operation and rotates 360° around the pole via a lever so the shade follows the sun while furniture underneath stays in place.

Short description
Cygnus opens nine square metres of shade with no centre pole. One light touch and the shade is already above you, for a terrace lunch that stretches past four, for a full afternoon by the pool. The sun moves, you turn the lever: everything underneath stays right where it is.

Main highlights

• Push-open gas piston: open and close in seconds, even from your seat.
• 360° rotation with lever: the shade follows the sun, the table stays put.
• Acrishade fabric 260 gsm, UPF 50+: colour-stable season after season.
• Commercial-grade aluminium frame with an arm and 8 rigid ribs.
• Top air vent to release gusts and help stabilise the canopy.

Comparison (short)
Auriga — Cantilever with integrated LED lighting and foot-pedal rotation
Cygnus — Cantilever with gas-piston push-open and 360° lever rotation
Cygnus Qadro — Quadruple cantilever (four arms) for larger continuous shade

Technical table
Available sizes: 3×3 m (9 m² coverage)
Opening and movement: Gas-assisted push-open (gas piston) · 360° rotation via lever at base (no tilt)
Fabric: Acrishade 260 g/m², solution-dyed acrylic, UPF 50+, water-repellent, light fastness ~1,500 h
Frame: Commercial-grade aluminium; pole cross-section 75 × 100 × 2.5 mm
Ribs: 16 × 28 × 1.2 mm profile · 8 ribs
Arm projection from pole: 100 cm
Heights: Total open height 247 cm · Headroom beneath canopy 210 cm · Closed length 50 cm
Wind resistance: up to ~30 km/h (minimum recommended base ballast 120 kg)
Net weight: 29 kg
Frame finishes: Anthracite · Matt Anodizing (examples)
Lighting: central hub under canopy compatible with dedicated rechargeable lamps (sold separately)
Warranty: 7 years on frame · 3 years on canopy

Caractéristiques / Spécifications techniques

• Model name: Cygnus (cantilever side-arm garden parasol).
• Coverage area: 9 m² (3×3 m canopy).
• Canopy fabric: Maanta Acrishade, 260 g/m², solution-dyed acrylic, UPF 50+, water-repellent, AATCC spray test high result.
• Mechanism: gas piston (car-boot style) assisting opening and controlled closing.
• Rotation: continuous 360° rotation controlled and locked with lever at pole base.
• Pole: aluminium commercial-grade 75 × 100 × 2.5 mm.
• Arm and ribs: 8 aluminium ribs, 16 × 28 × 1.2 mm profile; arm projection ~100 cm.
• Top air vent: single vent to relieve uplift and stabilise canopy in gusts.
• Lighting provision: central hub under canopy compatible with magnetic or clip rechargeable LED lamps (accessories sold separately).
• Wind guidance: recommended for use up to 30 km/h; use appropriate ballast or anchoring for safety.
• Bases and anchors: compatible with fillable mobile bases, 4-in-1 ballast base, wooden deck plate, in-ground anchor plate and concrete anchoring plates (bases not included).
• Package dimensions & weight: parcel approx. 269 × 22 × 48 cm; net weight ~29 kg, gross weight ~34 kg.
• Finish options: examples include Matt Anodizing and Anthracite; canopy colours available (Graphite, Vellum, Glacier, White, Terracotta, Wheat).
• Warranty: 7 years for frame components; 3 years for canopy (textile) components.
