Water heater heating element IDEAL

yellowwith thermostat

Product overview
MAGNUM Ideal frost-free heating ribbon is a plug‑in heating cable designed to prevent freezing and burst of outdoor taps, drains and water pipes. It provides automatic temperature control via a built‑in bi‑metal thermostat and is supplied with a 2 m connection cable and earthed plug. Available in lengths from 1 to 48 metres at 10 W per metre.

Operation and use

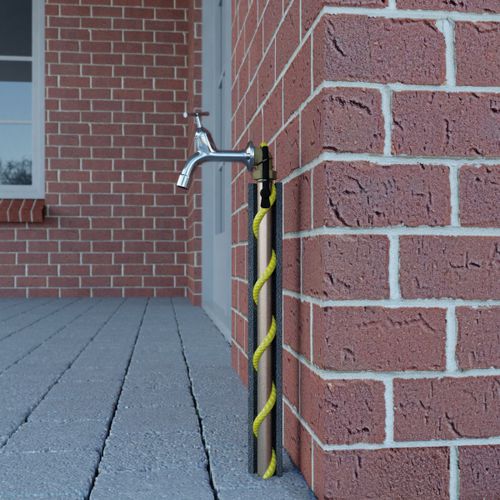

The ribbon turns on automatically below +5°C and switches off when the pipe temperature exceeds +13°C. It is applied along the pipe in spiral or straight runs to maintain a frost-free surface temperature. For plastic (PVC) pipes, wrap the pipe completely with aluminium tape before applying the heating ribbon to ensure correct heat transfer.

Installation
Fix MAGNUM Ideal to pipes using aluminium tape or plastic ties. Always fit polyethylene pipe insulation with a minimum wall thickness of 10 mm over the assembly for optimal protection and energy-efficient operation. Follow local electrical installation rules and ensure the cable and plug are used only outdoors as specified.

Package content

• Ready-to-use heating ribbon with built-in bi-metal thermostat
• Installation instructions
• PVC tape

Available variants (Art.nr. / Description / Length / Power / Volt)
155001 | MAGNUM Ideal frost-free ribbon | 1 m | 10 Watt | 230V
155002 | MAGNUM Ideal frost-free ribbon | 2 m | 20 Watt | 230V
155004 | MAGNUM Ideal frost-free ribbon | 4 m | 40 Watt | 230V
155006 | MAGNUM Ideal frost-free ribbon | 6 m | 60 Watt | 230V
155008 | MAGNUM Ideal frost-free ribbon | 8 m | 80 Watt | 230V
155010 | MAGNUM Ideal frost-free ribbon | 10 m | 100 Watt | 230V
155014 | MAGNUM Ideal frost-free ribbon | 14 m | 140 Watt | 230V
155018 | MAGNUM Ideal frost-free ribbon | 18 m | 180 Watt | 230V
155022 | MAGNUM Ideal frost-free ribbon | 22 m | 220 Watt | 230V
155026 | MAGNUM Ideal frost-free ribbon | 26 m | 260 Watt | 230V
155030 | MAGNUM Ideal frost-free ribbon | 30 m | 300 Watt | 230V
155034 | MAGNUM Ideal frost-free ribbon | 34 m | 340 Watt | 230V
155040 | MAGNUM Ideal frost-free ribbon | 40 m | 400 Watt | 230V
155048 | MAGNUM Ideal frost-free ribbon | 48 m | 480 Watt | 230V

Characteristics / technical specifications

• System type: Outdoor
• Lengths available: 1 m to 48 m
• Power output: 10 Watt per metre
• Connection voltage: 230 V / 50 Hz
• Connection cable: 2 metres with earthed plug
• Temperature control: Built-in bi-metal thermostat (on below +5°C, off above +13°C)
• Certifications: VDE, CE, KEMA, IPX7
• Recommended insulation: Polyethylene pipe insulation, minimum wall thickness 10 mm
• Installation note: On plastic (PVC) pipes, wrap the pipe fully with aluminium tape before applying the ribbon
• Warranty: 2 year guarantee on electrical function
