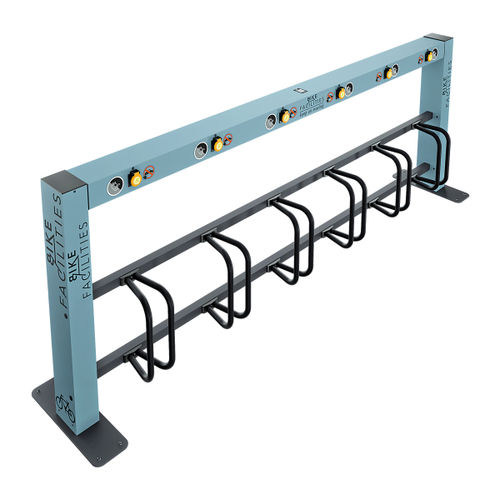

Floor-mounted bike rack E-RAS-M-6

verticalfor public spacealuminum

Electrical bicycle rack made of anticorodal aluminum—lightweight, durable, and versatile. Compatible with e-bikes and scooters of various sizes, a maintenance station can be added. Designed for maximum adaptability, the rack can be easily customized thanks to its compatibility with a wide range of accessories. Structure made of anticorodal aluminum, molded plastic components, various stainless steel bolts. UV-resistant powder coating. No special maintenance required: the device is designed to withstand all weather conditions. Device manufactured in compliance with international IEC and CEI EN standards. Height: 1005 mm Width: 2700 mm Depth: 500 mm Weight: 45 kg ELECTRICAL SECTION: 6 Schuko sockets, 8 A max, IP54, 230 volts 3 RCBOs, 30 mA residual current, 16 A rated current Connection of sockets using single-core FS17 cable, cross-section 2.5 mm²; connection between RCBO and electrical panel with neoprene cable type H07RN-F 3G4.00.B, 450/750 V, temperature range -25/+60°C. Electric cable length for connection to the power grid: 5
