Roll-up industrial door

anodized aluminumpolyesterautomatic

Description

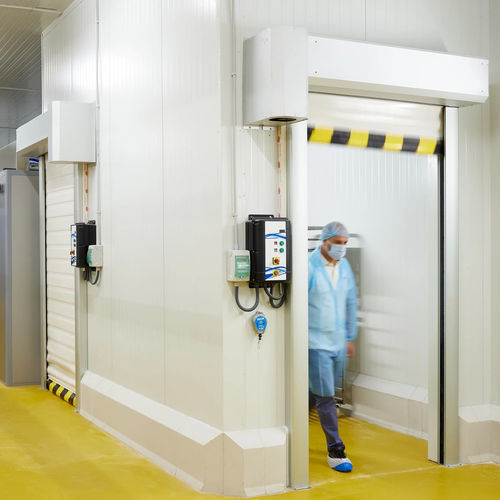

The high-speed roll-up door is engineered for cold-storage chambers with interior temperatures up to 0ºC. It is intended for compartmentalising zones where the maximum temperature difference between interior and exterior is 25 ºC and ambient humidity up to 30%. Fast operation minimises heat exchange and reduces energy losses during frequent openings.

Applications / Advantages

• Sectorisation of cold-storage areas and adjacent working zones
• Reduction of temperature losses and energy consumption during frequent access
• Designed for indoor installations in moderate cold environments (up to 0 ºC)
• High operating speed optimises logistic flows and product conservation

Optional equipment

• Motor cover
• Silk-screen printing on fabric (on request)
• Structure lacquered in specified RAL colour
• Opening systems: UPS, remote control, radar detectors, sensors
• Custom-coloured or silk-screened fabric
• Light and sound indicators

Colors

• RAL 7037
• RAL 9016

Peepholes / Vision panels

• Clear vision panels
• UV-filter vision panels

Technical specifications

• Curtain: high-strength polyester fabric to limit thermal transfer (weight 1350 g/m²)
• Foam coating on curtain
• Curtain temperature resistance: -25ºC to +70ºC
• Maximum dimensions: 3600 x 4000 mm
• Intended for indoor use
• Wind resistance: no classification (designed for interior use)
• Structure: anodised aluminium (RAL lacquering optional)
• Opening speed: adjustable up to 2.0 / 1.0 m/s depending on dimensions
• Available fabric types: resistant to welding splatter, impact, cutting; resistant to high temperatures
• Motor with heated resistors for cold environments
• Integrated safety photocell barrier
