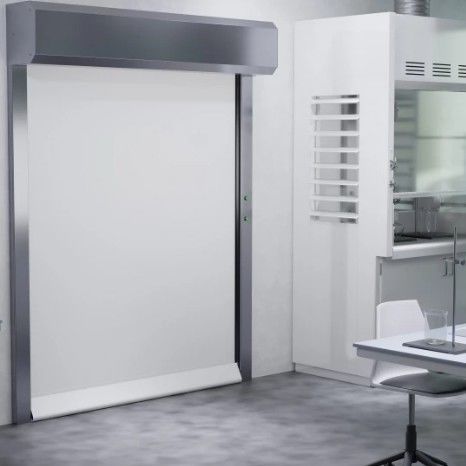

Roll up industrial door

roll-upthermally-insulatedacoustic

Description
Manusa designs high-speed roll-up doors for laboratories and cleanrooms to meet stringent requirements for air tightness, cleanliness and safety. The product integrates functional design with technical performance to support controlled environments.

Key features

• Designed specifically for laboratories and cleanroom environments
• Air permeability: Class 5 according to UNE-EN H12426:2000
• Excellent thermal and acoustic insulation
• High-speed vertical operation with sensors and integrated safety mechanisms
• Customisable curtain with iconography, images, logos or signage
• Motor and electronics integrated in the head for compact installation

Optional equipment

• Double-height stop selector
• Pull cord
• Remote control
• External push button
• Presence and motion sensor
• Loop detector
• Photocell safety barrier
• UPS (uninterruptible power supply)

Colours

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Peepholes / Vision options

• Shapes: Square, Rectangular
• Positions: Horizontal, Vertical
• Quantity: Multiple peepholes possible
• Vision panel options: Clear vision, UV filter vision

Technical specifications

• Overall dimensions (example maximum): 4200 x 4350 (width x height) mm
• Opening direction: vertical
• Intended use: indoor (laboratories, cleanrooms)
• Air permeability: Class 5 according to UNE-EN H12426:2000
• Motor and electronics integrated in the head
