Roll-up industrial door PLE 1

steelaluminumanodized aluminum

Overview

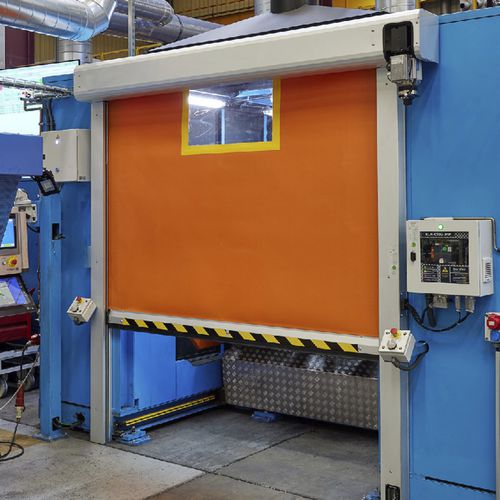

The RU-4000 high-speed roll-up door is designed for installation on automated production lines and in industrial processes. Its high opening and closing speed reduces cycle time, enabling smoother material flow and safeguarding operators working near machinery.

Safety and standards
This product meets PLe / SIL3 performance requirements according to EN ISO 13849-1 and SIL3 EN 62061. It is supplied as standard with a category 4 magnetic sensor and can be configured with certified sensors from other manufacturers. The control cabinet provides PLC connectivity using analogue signals for status monitoring and integration into line control systems.

Design and construction

• Maximum dimensions up to 4000 x 4000 mm.
• Intended for indoor use on production lines or as enclosures for hazardous machinery.
• Combined structure: anodised aluminium exterior with steel interior for durability in industrial environments.
• Continuous guide system along the full height for reliable operation.

Curtain / fabric options

• Multiple curtain types available, including fabrics formulated for resistance to welding splatter and high temperatures.
• Fabrics resistant to cutting (sheet handling), impact from parts and welding spatter for heavy-duty or metalworking areas.
• Special fabric option: 2 mm thickness for welding / cutting / high-temperature applications.

Performance

• Adjustable opening speed up to 2.5 m/s (dependent on dimensions).
• High cycle performance to minimise idle time in automated processes.

Optional equipment

• 2 mm thick special fabric for welding / cutting / high temperatures.
• Integration options for certified sensor brands that meet safety category requirements.
• PLC connectivity via analogue signals for real-time status control and integration.

Colors

• RAL 5000
• RAL 7037
• RAL 2004

Vision panels / Peepholes

• Clear transparent vision panel
• UV-filter vision panel

Downloads

• High-speed roll-up door for automated production lines catalogue (product catalogue available for download).

Technical specifications

• Maximum dimensions: 4000 x 4000 mm.
• Application: indoor installation on production lines or enclosures for hazardous machinery.
• Structure: anodised aluminium exterior and steel interior.
• Opening speed: adjustable up to 2.5 m/s (dependent on dimensions).
• Curtain options: fabrics resistant to welding splatter, cuts, impacts and high temperatures; special 2 mm fabric available.
• Guide system: continuous guides along full door height.
• Safety compliance: meets PLe / SIL3 requirements under EN ISO 13849-1 and SIL3 EN 62061; supplied with category 4 magnetic sensor; compatible with certified sensors.
• Control: control cabinet with PLC connectivity via analogue signals for status monitoring and integration into automated systems.
