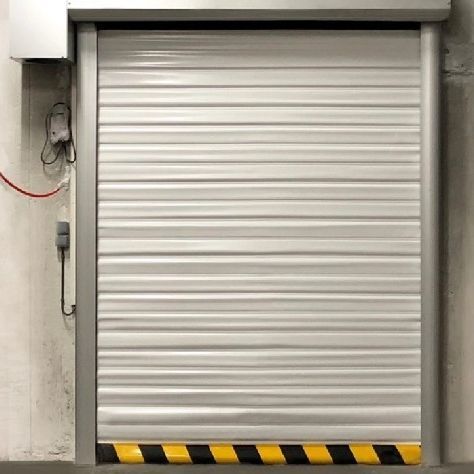

Roll-up industrial door

polyesterfoamaluminum

Product overview
The CR-30 high-speed roll-up door is designed for compartmentalisation of cold-storage chambers with exterior-to-interior temperature differentials up to 25 ºC and ambient humidity up to 30%. The curtain is a 3-layer assembly (2 PVC layers + 1 foam layer). In combination with heated guides and a motor equipped with heated resistors, the system ensures reliable operation in freezing environments and helps reduce frost accumulation.

Applications

• Food industry (storage and processing areas)
• Logistics and cold-chain distribution
• Laboratories and cleanroom cold zones

Detailed description

• Curtain: high-resistance polyester curtain composed of 3 layers (2 PVC + 1 foam) to limit thermal transmission.
• Curtain weight: approx. 3150 g (for 2 PVC + 1 foam construction).
• Curtain temperature resistance: -35º to +70º.
• Maximum recommended dimensions: 3600 x 4000 mm.
• Installation: indoor, designed for cold-room and freezing-room separation.
• Structure: anodised aluminium frame with heated guides to prevent ice build-up.
• Motor: with heated resistors to ensure reliable start-up and operation at low temperatures.
• Opening speed: adjustable up to 2.0 / 1.0 m/s depending on dimensions.
• Safety: integrated photocell barrier for obstacle detection.
• Intended to reduce frost formation and maintain operational continuity in freezing environments.

Optional equipment

• Motor cover
• Silk-screen printing on fabric (custom graphics)
• Structure lacquered in a RAL colour (to be determined)
• Opening system options: UPS, remote control, radar sensors, presence sensors
• Coloured or silk-screened custom fabric
• Light and sound indicators

Colors

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Technical specifications

• Canvas composition: 3-layer polyester curtain (2 PVC + 1 foam) for thermal insulation.
• Curtain operating range: -35º to +70º.
• Maximum manufacturing dimensions: 3600 mm (width) x 4000 mm (height).
• Wind resistance: not classified.
• Heated guides integrated in the anodised aluminium structure.
• Motor with heated resistors.
• Adjustable opening speed: up to 2.0 / 1.0 m/s depending on size.
• Safety systems: photocell protection barrier.
