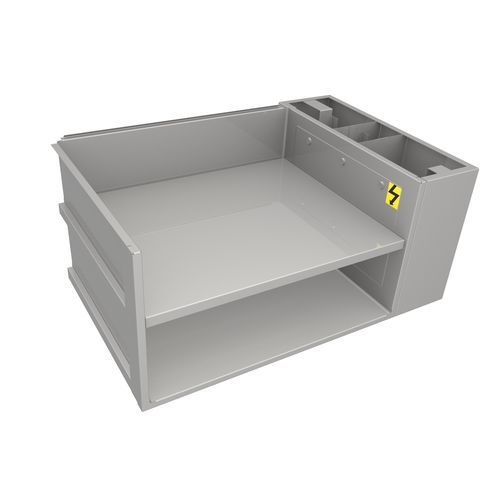

Kitchen base cabinet MS-HF-EB

free-standing

Product
PREMIUM hygienic cabinets

Overview
An energy optimisation system reduces operating costs by temporarily switching off selected consumers to limit peak power consumption.

Benefits

• Chrome-nickel steel tray
• 1.5 mm chrome-nickel steel construction
• Rounded corners for hygiene

Benefits (detailed)

• Chrome-nickel steel tray
  Maximises usable space and simplifies handling
• 1.5 mm chrome-nickel steel
  Stable, heavy-duty construction for long service life
• Rounded corners
  Enable fast and thorough cleaning with no hidden dirt traps

Product variants & descriptions
Hygiene sub-structure accessible from one side — MS-SO-EB
Accessible from one side; includes rear panel and base. Hygienic design with rounded corners for simple cleaning. Design complies with DIN provision H 2.

• No corners where dirt can hide
• Easy to clean
• Smooth side panels
• Open cooking suite bottom drawers available in any dimension

Hygienic sub-structure accessible from one side with tray — MS-HF-EB
Accessible from one side; includes rear panel and base. Hygienic design with rounded corners for simple cleaning. Design complies with DIN provision H 2.

• No corners where dirt can hide
• Easy to clean
• Smooth side panels
• Open cooking suite sub-structures available in any dimension
• Intermediate shelf brackets removable for cleaning

Hygiene sub-structure accessible from both sides — MS-SO-BB
Accessible from both sides; includes rear panel and base. Hygienic design with rounded corners for simple cleaning. Design complies with DIN provision H 2.

• No corners where dirt can hide
• Easy to clean
• Smooth side panels
• Open cooking suite bottom drawers available in any dimension

Hygienic sub-structure accessible from both sides with tray — MS-HF-BB
Accessible from both sides; includes rear panel and base. Hygienic design with rounded corners for simple cleaning. Design complies with DIN provision H 2.

• No corners where dirt can hide
• Easy to clean
• Smooth side panels
• Open cooking suite sub-structures available in any dimension
• Intermediate shelf brackets removable for cleaning

Hygiene sub-structure accessible from one side with GN grid — MS-SGN-EB
Accessible from one side; includes rear panel and base. Hygienic design with rounded corners. GN grids removable without tools for fast cleaning.

• No corners where dirt can hide
• Easy to clean
• Smooth side panels
• GN grids removable without tools

Hygienic sub-structure accessible from both sides with GN grid — MS-SGN-BB
Gastronorm compartment BB. Accessible from both sides; includes rear panel and base. Hygienic design with rounded corners. GN grids removable without tools.

• No corners where dirt can hide
• Easy to clean
• Smooth side panels
• GN grids removable without tools

Technical specifications

• Design compliance: DIN provision H 2 (hygienic design with rounded corners)
• Material: Chrome-nickel steel (tray); 1.5 mm chrome-nickel steel construction
• General features: No corners where dirt can hide; smooth side panels; easy to clean; open sub-structures / bottom drawers available in any dimension
• MS-SO-EB / MS-HF-EB (minimum dimensions): Width: 300 mm
  Depth: 300 mm
• MS-SO-BB / MS-HF-BB (minimum dimensions): Width: 300 mm
  Depth: 300 mm
• MS-SGN-EB (external dimensions): 415 x 600 x 560 mm
• MS-SGN-BB (external dimensions): 415 x 1000 x 560 mm; 415 x 1100 x 560 mm
