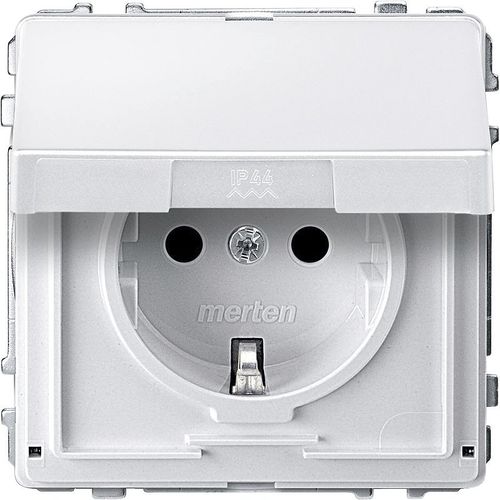

Power socket MEG2310-7219

wall-mountedflushwhite

Product overview

• Name: SCHUKO socket with hinged cover, touch protection, push-in terminals
• Series / Design: AQUADESIGN
• Color: Polar white (RAL 9010)
• Brand: Merten

Quick info

• EAN code: 4042811139322
• Recommended retail price: €19.55 (excluding VAT, see product page)
• Material price group: W1

Main features (table)
Product or component type: Socket
Device representation: Mechanism with mounting frame and cover plate
Standard variant of the outlet: German

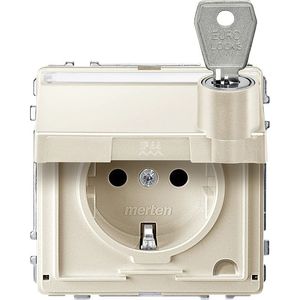

Additional information on the socket: Lockable; with hinged cover
Product name: Aquadesign

Additional features

• Pole configuration: 2-pole + E
• Device wiring mounting: Flush-mounted
• Mounting mode: By screws and claws
• Rated current: 16 A
• Rated operational voltage [Ue]: 250 V
• Connections - terminals: Push-in terminals

Installation

• Ingress protection (IP): IP44
• Packaging unit: 1 piece per pack (further packaging information on the product page)

Warranty

• Warranty: 18 months

Sustainability / Environmental note

• CO2 footprint (total lifecycle carbon footprint): approx. 0.9 kg CO2 eq.
• Average percentage of recycled plastic content: 21%
• Recyclability potential: 50%

Technical characteristics / specifications

• Type: Socket, 2P+E (SCHUKO)
• Series: AQUADESIGN
• Color: Polar white (RAL 9010)
• Operating voltage: 250 V
• Rated current: 16 A
• Terminal type: Push-in terminals
• Mounting type: Flush-mounted (mounting by screws and claws)
• Ingress protection: IP44
• Additional: Lockable, hinged cover, touch protection
• EAN: 4042811139322
• Packaging unit: 1 piece
• Warranty: 18 months
