Power socket MEG2310-7214

electricwall-mountedflush

Product overview

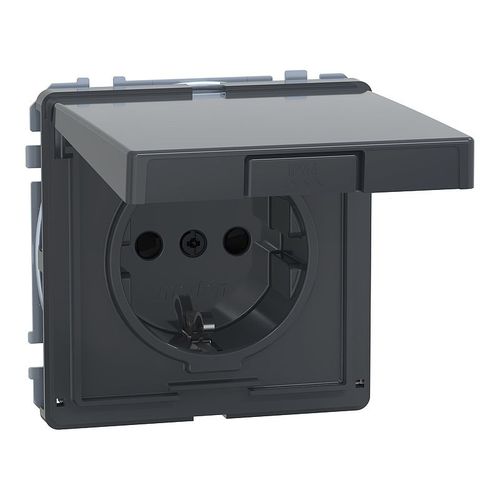

SCHUKO socket with hinged cover, touch protection and screwless push-in terminals. Design series: AQUADESIGN. Color: Anthracite (RAL 7024).

Features

• Color: Anthracite (RAL 7024)
• Material price group: W1
• Hinged cover (locked)
• Touch protection
• Outlet pole configuration: 2‑pole + Earth (2P+E)
• Connections: screwless push-in terminals
• Rated current: 16 A
• Rated operating voltage [Ue]: 250 V
• Protection rating: IP44
• Mounting / fixing: Flush-mounted; fixing mode: Screws and claws
• Packaging units: VPE1 = 1 piece (PCE); VPE2 = 10; VPE3 = 60 (with respective weights and dimensions)
• Warranty: 18 months

Product identification
Product name on page: AQUADESIGN / Item code on page: MEG2310-7214
EAN: 4042811139308
Recommended retail price on the page: 25,55 € (as shown on the product page).

Characteristics / Technical specifications

• Product or component type: Socket
• Device representation: Mechanism with mounting frame and cover plate
• Additional information: With hinged cover; locked
• Outlet pole configuration: 2‑pole + Earth
• Device wiring mounting: Flush-mounted
• Fixing mode: Screws and claws
• Rated current: 16 A
• Rated operating voltage [Ue]: 250 V
• Connections - Terminals: screwless terminals
• Protection rating (IP): IP44
• Packaging data (excerpt): VPE1 Weight: 98,000 g; VPE1 Height: 4,900 cm; VPE1 Width: 7,900 cm; VPE1 Length: 13,600 cm; further VPE data for VPE2/VPE3 are listed on the product page
• Environmental / CO2 information (from product information): Total lifecycle carbon footprint: 0.9 kg CO2 eq.; Manufacturing phase (A1-A3): ≈0.44 kg CO2 eq.; Distribution phase (A4): ≈0.05 kg CO2 eq.; Use phase (B2,B3,B4,B6): ≈0.18 kg CO2 eq.; End-of-life (C1-C4): ≈0.24 kg CO2 eq.; Recycling potential: 50%; Average share of recycled plastics: 21%
