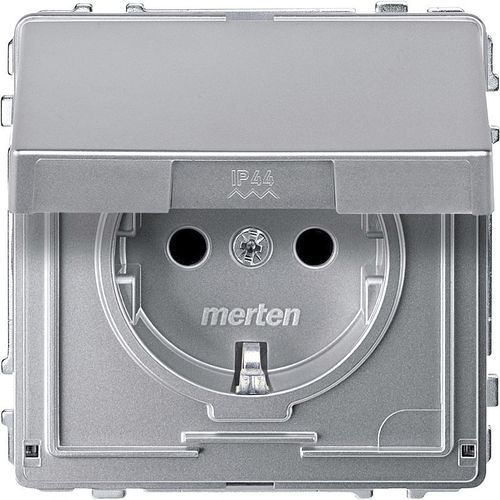

Power socket MEG2310-7260

electricwall-mountedflush

Summary

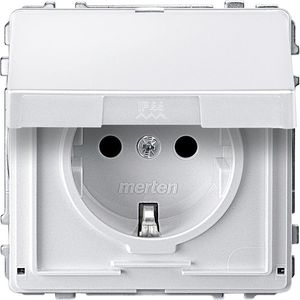

SCHUKO socket from the AQUADESIGN series with hinged cover and integrated touch protection. Aluminium finish. Suitable for flush-mount installation, with screwless push-in terminals. Supplied as a single unit; material price group W1.

Product identification

• Product designation: SCHUKO socket
• Series / Design: AQUADESIGN
• Colour / Finish: Aluminium
• Brand: Merten

Key features

• Type of product/component: Socket
• Device representation: Mechanism with mounting frame and cover plate
• Additional socket information: Lockable; with hinged cover
• Product name (family): Aquadesign

Additional characteristics

• Supply frequency: 50 Hz
• Pole configuration: 2-pole + E
• Device wiring mounting: Flush-mount / in-wall
• Fixing mode: By screws and claws
• Rated current: 16 A
• Rated operational voltage [Ue]: 250 V
• Connections - terminals: Screwless push-in terminals
• Surface treatment: Painted

Mounting

• Protection rating (IP): IP44
• Mounting: Designed for flush installation

Packaging units

• Packaging unit 1 type: PCE
• Number of devices per package: 1
• Packaging weight (Lbs): 98,000 g
• Packaging unit 2 type: BB1, Quantity: 10, Weight: 1,108 kg
• Packaging unit 3 type: CAR, Quantity: 60, Weight: 7,002 kg

Contractual warranty

• Warranty (in months): 18

Technical specifications

• EAN: 4042811139346
• Material price group: W1
• Mechanical features: Hinged cover, lockable
• Electrical ratings: 16 A, 250 V
• Connection technology: Screwless push-in terminals
• Environmental protection: IP44 (suitable for wet rooms according to protection rating)
• Surface: Painted (aluminium tone)
• Mounting type: Flush-mount / in-wall
• Scope of delivery: Single device (1 piece per PCE pack)
• CO2 footprint (total): 1 kg CO2 eq. (Total lifecycle carbon footprint)
• Recycling and sustainability: Approximately 21% recycled plastic content, recyclability potential ~50%
