Power socket MEG2310-7244

electricwall-mountedflush

Overview

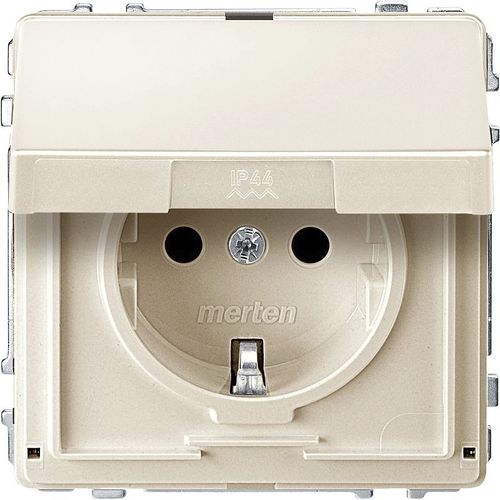

The AQUADESIGN SCHUKO socket with hinged cover and touch protection. Supplied as a mechanism with mounting frame and cover plate. Colour: White (RAL 1013).

Key product features

• Colour: White (RAL 1013)
• Material price group: W1
• Brand: Merten
• EAN: 4042811139339
• Configuration: 2-pole + E
• Number of sockets: 1
• Mounting: flush-mounted
• Fixing method: screws and claws
• Terminals: push-in terminals (tool-free)
• Protection rating: IP44
• Rated current: 16 A
• Rated operational voltage: 250 V
• Lockable: yes; With hinged cover
• Warranty: 18 months
• Average recycled plastic content: 21%
• Recyclability potential: 50%
• WEEE: Product must not be disposed with household waste; dispose according to local regulations

Compatibility

• Compatible flush-mounted box: MEG3970-7504
• Compatible cover frames (selection): 400260 (AQUADESIGN frame 2-gang, aluminium), 400360 (3-gang, aluminium), 400460 (4-gang, aluminium), 400114 (1-gang, anthracite), 400144 (1-gang, white), 401219 (2-gang with screws, polar white) — additional AQUADESIGN frames available

Documentation (selection)
Product data sheet, Declaration of Conformity (Sustainability), Catalog, Declaration of conformity, Technical illustration, Environmental Disclosure, Certificate

Packing & Shipping
Packaging unit 1: PCE — Items per pack: 1 — Packaging weight: 98,000 g — Packaging unit 2 quantity: 10 (weight 1,086 kg) — Packaging unit 3 quantity: 60 (weight 6,854 kg)

Price note
Recommended retail price exclusive of VAT (price shown on page: 19,55 €).

Technical specifications

• Series: Merten
• Product name: Aquadesign
• Product or component type: socket
• Device presentation: mechanism with mounting frame and cover plate
• Additional information: lockable; with hinged cover
• Output pole configuration: 2-pole + E
• Number of sockets: 1
• Mounting / device wiring: flush-mounted
• Fixing mode: by screws and claws
• Rated current: 16 A
• Rated operational voltage [Ue]: 250 V
• Colour: White (RAL 1013)
• Connections - terminals: push-in terminals
• Protection rating (IP): IP44
• Warranty (contractual): 18 months
• Average percentage of recycled plastic content: 21%
• Recyclability potential: 50%
• WEEE note: Product must not be disposed of with household waste; dispose accordingly
