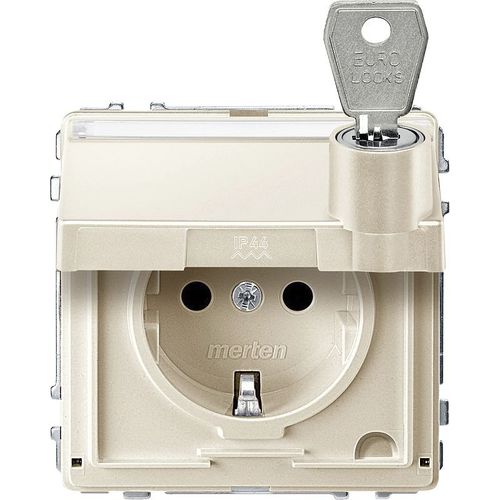

Electric socket MEG2316-7244powerflushbuilt-in
Add to favorites
Compare this product
Characteristics
- Type
- electric, power
- Mounting
- flush, built-in
- Color
- white
- Protection class
- IP20
- Other characteristics
- with hinged cover, Schuko
Description
Short description
Features / Highlights
Packaging & Logistics
Sustainability / Environment
Note
Technical characteristics / specifications
- Single SCHUKO socket with flap cover and label field
- Lockable (various locking options available)
- AQUADESIGN product family, colour white (RAL 1013)
- For flush mounting, with push-in (screwless) terminals
Features / Highlights
- Flap cover
- Lockable / can be secured
- Label surface (writing field)
- Terminals: screwless push-in terminals
- Mounting method: screws and claws
- Installation type: flush-mounted (device wiring: built-in)
Packaging & Logistics
- Unit pack (VPE 1): 1 piece per pack (weight VPE 1: 134,000 g)
- Outer pack (VPE 2 / pallet pack): quantity 30, weight 4,396 kg
- Package dimensions (VPE 1): height 7,400 cm, width 7,500 cm, length 8,400 cm
Sustainability / Environment
- Mercury-free
- Packaging without plastic: Yes
- Packaging with recycled cardboard: Yes
- Take-back possible
- CO2 footprint (total lifecycle): approx. 1 kg CO2 eq.
- Average share of recycled plastics: 20 %
- Recycling potential: 50 %
- WEEE note: dispose product separately, do not discard with household waste
Note
- Rated current: 16 A, rated operating voltage: 250 V
- Protection class: IP20
- Warranty: 18 months
Technical characteristics / specifications
- Series: Merten
- Product name: Aquadesign
- Commercial denomination: Aquadesign
- Product/component type: Socket
- Device presentation: Mechanism with mounting frame and cover plate
- Output pole configuration: 2-pole + E
- Number of sockets: 1
- Device wiring mounting: flush-mounted
- Mounting method: by screws and claws
- Rated current: 16 A
- Rated operating voltage [Ue]: 250 V
- Colour tone: White (RAL 1013)
- Connections - terminals: screwless terminals
- Ingress protection (IP): IP20
- VPE 1 type: PCE
- Number of devices per pack: 1
- Packaging weight (VPE 1): 134,000 g
