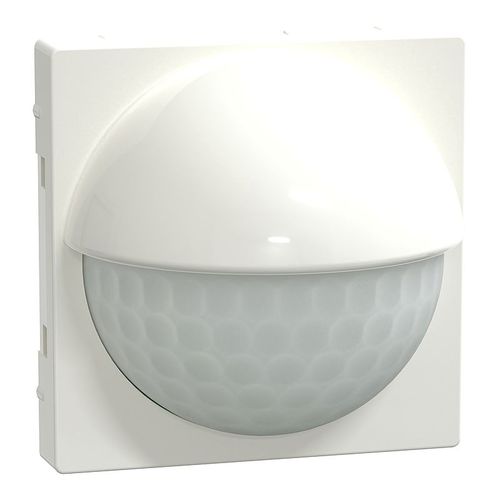

Infrared presence sensor ARGUS 180 UP

indoorplug-inrecessed

Product overview
ARGUS 180 UP sensor module for flush mounting in polar white glossy finish, System M. Multifunction presence/motion sensor module for integration into Merten switch programs. Thermoplastic material with glossy surface. Recommended for lighting control with a detection angle of 180° and presence detection area up to 16 m x 12 m. Mounting height: 1.1 m. Product name: Argus. Color: Polar white. Material price group: E0.

Main documents

• Product datasheet
• Declaration of Conformity (Sustainability)
• System user guide (Technical information)
• Declaration of conformity
• Certificate
• Catalogue
• Instruction sheet / Installation manual
• User guide / Operating instructions
• Circularity Profile
• Environmental Disclosure

Compatible products (selection)

• Control units: e.g., MEG5171-0000 universal dimmer insert
• Cover frames: various M‑Plan, M‑Pure, 1‑M and M‑Smart frames (different colors and materials, single-gang variants)
• Inserts: relay switching insert (MEG5161-0000), blind control insert (MEG5165-0000), DALI control insert (MEG5185-0000) among others

Document note

• The website provides multiple technical documents and certificates for the product (datasheet, conformity declarations, installation guides, user manuals, environmental/circularity documents).

Characteristics / technical specifications

• Series: Merten
• Compatible product family: PlusLink
• Product or component type: Presence detector
• Device presentation: Module
• Color: Polar white
• Product name: Argus
• Technology: Electronic
• Mounting mode: Plug-in
• Product purpose: Multifunction control unit
• Material: Thermoplastic
• Surface finish: Glossy
• Presence detection area: 16 m x 12 m
• Detection angle: 180°
• Mounting height: 1.1 m
• Degree of protection (IP): IP20
• Device application: Lighting
• Time delay range: 10 s - 30 min
• Aesthetic dimensions: 55 x 55 mm
• Packaging unit: 1 piece per pack
• Contractual warranty: 18 months
