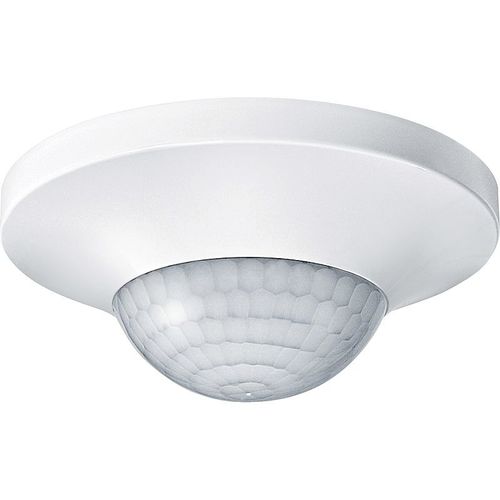

Infrared presence sensor ARGUS

indoorceiling-mountedhome

Product overview

• Product name: ARGUS presence detector, 1-gang relay, polar white
• Product code (manufacturer): MEG5510-1119
• Brand: Merten
• Material price group: E4
• EAN: 4042811182380
• Price (recommended retail price, excluding VAT): €124.00

Main features
Series: ARGUS presence detectors
Series (short): ARGUS
Product or component type: Presence detector
Load types: Halogen lamp: 2000 W, AC
Motor: 1,000 VA, AC
Capacitive: 10 A, 140 µF, AC
Incandescent lamp: 2200 W, AC
Low-voltage halogen with wire-wound transformer: 500 VA, AC
Low-voltage halogen with electronic transformer: 1,050 VA, AC
Energy-saving lamp: 100 VA
Colour: Polar white
Colour code: RAL 9010
Packing type: Cardboard box
Short product name: Argus


Additional features
Rated operational voltage [Ue]: 220/230 V
Network frequency: 50/60 Hz
Input compatibility: Push-buttons and electronic module
Input function: 1 external trigger via PL
Output current: 10 A
Adjustment type: Light sensitivity adjustable; time adjustment
Control type: Remote control
Available function: Master function
Time delay: 10 s - 30 min
Light level setting: 10…1000 lux
Horizontal detection angle: 0…360°
Detection area: Radius: 7 m
Material: PC (polycarbonate) glossy
Enclosure variant: Ceiling
Mounting height: 2.5 m


Installation & environmental conditions
Ingress protection (IP): IP20
Ambient operating temperature: 0…25 °C


Packaging units & dimensions
Package type 1: PCE
Units per package: 1
Packed weight: 254.000 g
Package 1 height: 10.200 cm
Package 1 width: 14.400 cm
Package 1 length: 18.000 cm
Package type 2: CAR
Package 2 quantity: 6
Package 2 weight: 1.906 kg
Package 2 height: 19.700 cm
Package 2 width: 30.300 cm
Package 2 length: 40.700 cm


Warranty
Warranty (months): 18


Characteristics / Specifications

• Type: Presence detector with 1-gang relay
• Supply voltage: 220/230 V AC, 50/60 Hz
• Max. switching current: 10 A
• Detection radius: 7 m (at 2.5 m mounting height)
• Detection angle: 0–360° horizontal
• Light sensitivity adjustment range: 10–1000 lux
• Adjustable time delay: 10 s – 30 min
• Housing material: glossy polycarbonate (PC)
• Colour: Polar white (RAL 9010)
• Ingress protection: IP20
• Operating temperature: 0–25 °C
• Weight (incl. packaging): 254 g (single unit)
