Indoor motion sensor ARGUS STANDARD

recessedrecessed ceilingcommercial

Product name

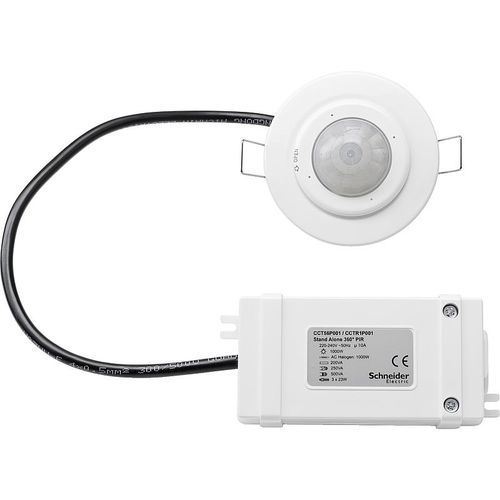

ARGUS indoor motion sensor Standard for recessed ceiling 360, white

Quick information
Part number: CCT56P001
Color: White
Material price group: EQ
Price (MSRP, excl. VAT): 87,30 €
EAN: 3606480149955

Main features
Series: ARGUS standard motion sensors / ARGUS
Product or component type: Motion sensor
Load type: Incandescent lamp: 1000 W AC; Halogen lamp: 1000 W AC; Low-voltage halogen with wound transformer: 500 VA; Low-voltage halogen with electronic transformer: 250 VA; Fluorescent lamp: 200 VA AC; Compact fluorescent lamp: 3 x 23 W AC; Capacitive: 6 A, 21 µF AC; Capacitive: 10 A, 14 µF AC
Tone / main colour: White
Packing type: Cardboard

Settings and detection
Light sensitivity: adjustable (5 … 2000 lux)
Time delay: 5 seconds to 10 minutes
Type of setting: Adjustable light sensitivity, time setting
Horizontal detection angle: 0 … 360°
Detection range: Radius 3.9 m (at mounting height 3 m)

Mechanics / Housing
Material: ABS + matt PC
Enclosure variant: Ceiling (recessed ceiling / ceiling recessed)
Recommended mounting height: 3 m
Dimensions: Depth 33.5 mm; Width 105.3 mm; Height 56.7 mm
Connections / terminals: Screw terminal

Operation and environmental conditions
Rated operating voltage [Ue]: 220 - 240 V
Network frequency: 50 Hz
Output current: 10 A
Operating conditions: Indoor use only
Degree of protection (IP): IP20
Ambient operating temperature: -15 … 40 °C

Packing and logistics
Packaging unit: 1 unit per pack
Number of units per pack: 1
Packaging weight (unit): 284,000 g
Packing 2 (S03) quantity: 24; Packing 2 weight: 7,271 kg
Packing 3 (P12) quantity: 576; Packing 3 weight: 186,560 kg

Warranty
Contractual warranty: 18 months

Documents (available document types on the product page)
Product data sheet, Declaration of Conformity (Sustainability), EU-RoHS statement, User guide, Catalog, Circularity Profile, Environmental Disclosure, Technical illustration

technical specifications

• Series: ARGUS standard motion sensors
• Product or component type: Motion sensor
• Load type: Incandescent lamp 1000 W AC; Halogen lamp 1000 W AC; Low-voltage halogen (wound transformer) 500 VA; Low-voltage halogen (electronic transformer) 250 VA; Fluorescent lamp 200 VA AC; Compact fluorescent lamp 3×23 W AC; Capacitive 6 A / 21 µF AC; Capacitive 10 A / 14 µF AC
• Colour: White
• Material: ABS + matt PC
• Enclosure variant: Ceiling (recessed for ceiling)
• Mounting height: 3 m
• Detection range: Radius 3.9 m; horizontal detection angle 0–360°
• Rated operating voltage: 220–240 V
• Network frequency: 50 Hz
• Output current: 10 A
• Time delay: 5 s to 10 min
• Light sensitivity setting: 5 … 2000 lux
• Degree of protection: IP20
• Ambient temperature (operation): -15 … 40 °C
• Connections: Screw terminal
• Packaging: Cardboard; single packaging weight: 284 g
• Warranty: 18 months
• EAN: 3606480149955
