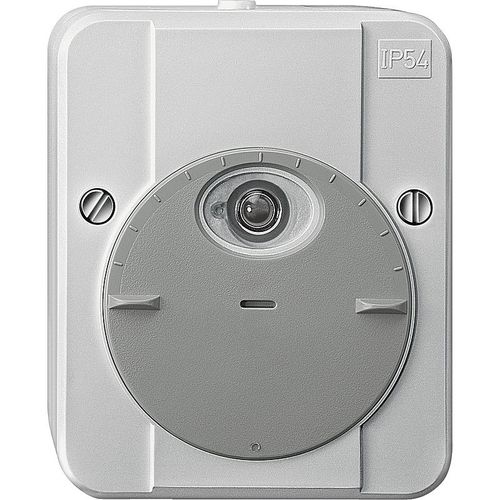

Surface mounted twilight switch ARGUS

Product description

• ARGUS dusk timer in light grey for automatic lighting control based on ambient light and time.
• Integrated light sensor for ambient light detection.
• Glossy polycarbonate housing, protection rating IP54 (suitable for protected outdoor areas).

Main features
Product or component type: dusk switch
Series: Merten
Colour: light grey

Additional features

• Function: with integrated light sensor
• Rated operational voltage [Ue]: 230 V
• Rated current [In]: 10 A
• Switching capacity: 2300 W
• Contact type and composition: 1 normally open contact
• Light sensitivity: 2–300 lux
• Material: polycarbonate, glossy

Mounting
Protection degree (IP): IP54

Packaging units
Package type 1: PCE
Number of devices per pack: 1
Package weight: 198 g
Package type 2: CAR
Package 2 quantity: 35
Package 2 weight: 7.318 kg

Warranty
Warranty (months): 18

Main documents (selection)

• Product datasheet
• REACh statement
• EU-RoHS statement
• Declaration of Conformity
• Certificate (VDE)
• Catalog
• Instruction sheet / Installation manual
• User guide

Technical specifications

• Product type: dusk switch
• Series: Merten
• Colour: light grey
• Voltage: 230 V
• Rated current: 10 A
• Switching capacity: 2300 W
• Contact number/type: 1 normally open contact
• Material: polycarbonate (glossy)
• Light sensitivity: 2–300 lux
• Protection degree: IP54
• EAN: 4011281851508
• Warranty: 18 months
