Aluminum solar shading HB-H-240-ND-00

verticalhorizontalorientable

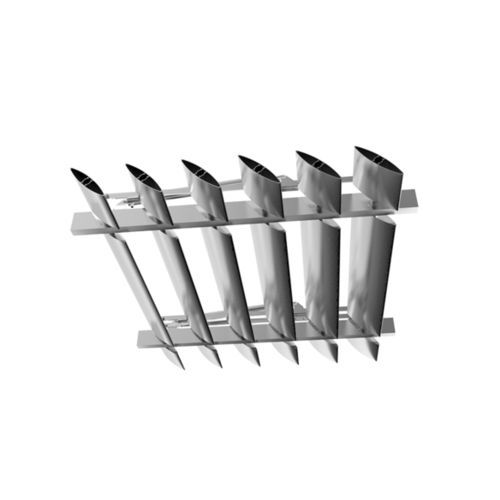

Overview: - MLL Sun Protection System - Type HB-H-240-ND-00 - Horizontally movable, horizontal louver - Louver type sonal D240 System Components: - Louver sonal D-240 - Design: Sun protection louver sonal D, elliptical louver, louver width 240 mm - Material: Aluminum EN AW 6060 T66 - Surface: Press blank, anodized E6 / EV1, C31 – C35, powder-coated RAL Classic, DB 701 – DB 703, NCS-S and pearl effect on request - Technical drawing: PDF, DWG, DXF, DWG 3D available - Cover type: DD-240-R - Design: Cover with round cutout, sonal D, for louver sonal D-240 - Material: Aluminum EN AW-5754 H22 - Surface: Press blank, anodized E6 / EV1, C31 – C35, powder-coated RAL Classic, DB 701 – DB 703, NCS-S and pearl effect on request - Technical drawing: PDF, DWG, DXF available - Cover type: DD-240-N - Design: Cover with round cutout, sonal D, for louver sonal D-240 - Material: Aluminum EN AW-5754 H22 - Surface: Press blank, anodized E6 / EV1, C31 – C35, powder-coated RAL Classic, DB 701 – DB 703, NCS-S and pearl effect on request - Technical drawing: PDF, DWG, DXF available - Lisen type: RL-120-40 - Design: Rectangular lisen sonal D, for louver sonal D-150 to D-450, design for movable systems - Material: Aluminum EN AW 6060 T66 - Surface: Press blank, anodized E6 / EV1, C31 – C35, powder-coated RAL Classic, DB 701 – DB 703, NCS-S and pearl effect on request - Technical drawing: PDF, DWG, DXF, DWG 3D available Product Description: The MLL Sun Protection System HB-H-240-ND-00 by MLL Hamburg is a sunshade made of elliptical aluminum large louvers. The system is a horizontally cantilevered sunshade with horizontally arranged louvers of type sonal D-240. The connection of the louvers is made via lisen profile directly or with spacer brackets to the on-site substructure. The louver inclination is adjustable via the linear drive. The louver inclination can be adjusted from approx. 0° - 110°, stepless. Surface: - Press blank, anodized E6 / EV1, C31 – C35, powder-coated RAL Classic, DB 701 – DB 703, NCS-S and pearl effect on request Application Areas: - Movable sun protection system by MLL for installation above glazed surfaces, on on-site substructure Usage Areas: - For indoor and outdoor use - As a view, glare, heat, sun protection Construction: - Sun protection system pre-assembled, delivered in individual parts Required Accessories: - Fastening materials for attachment to on-site substructure Optional Accessories: - Manual adjustment option Technical Data: - Installation: Louver with standard cover, adjustment rod and linear drive on lisen profiles. Lisen profiles for installation on on-site substructure. - Louver: sonal D-240 - Louver dimensions: 240 x 47 mm - Louver spacing: Standard spacing 235 mm, other spacings possible - Inclination angle / adjustment angle: approx. 0° - 110°, stepless - Span: approx. 3200 mm (or according to static calculation) - Material: All profiles made of aluminum EN AW 6060 T66, covers made of aluminum EN AW 5754 H22 - Construction product: Yes / Factory certificate according to DIN EN 10204 Characteristics / Technical Specifications: - Horizontal cantilevered - Movable design - Horizontal louver - Elliptical louver - 240 mm louver width - Louver span approx. 3200 mm - Manual or electric motor operation - Adjustable angle approx. 0° - 110°, stepless
