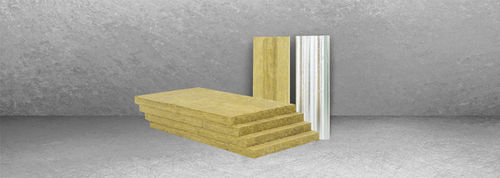

Thermal-acoustic insulation ROCKFLEX
stone woolrigid panelfor curtain wall

thermal-acoustic insulation
thermal-acoustic insulation
Add to favorites
Compare this product


Characteristics

Type
thermal-acoustic
Material
stone wool
Format
rigid panel
Use
for curtain wall, for attics, for roof, for facades, for ceiling, wall, for flooring
Technical characteristics
fireproof
Fire Class
Euroclass A1
Thermal conductivity

0.035 W/(m.K), 0.04 W/(m.K)

Thermal resistance

Max.: 3.16 W/(m.K)

Min.: 0.62 W/(m.K)

Thickness

Max.: 120 mm
(4.72 in)

Min.: 25 mm
(0.98 in)

Description

ODE Rockflex is an insulation material made of rock wool containing 97% natural fibers and obtained from basalt mineral molten into fibrous form at high temperatures. It is an optimal insulation material for buildings due to its thermal and sound insulation capabilities as well as non-flammability, and installations and industrial applications owing to its broad product range composed of fireproof items at a wide variety of densities and resistant to high temperatures. PARTITION BOARD Non-flammable, long-lasting panels made of rock wool, containing water repellent admixtures and used in thermal and sound insulation at building interiors. Fields of Application: Internal insulation between and below rafters, suspended ceilings, attic floors, wooden floors, elevator shafts, partition walls and exterior walls. Procedure: Placed between load bearing constructions and partition walls to provide thermal, sound and fire insulation. Density: 40-50kg/m³
