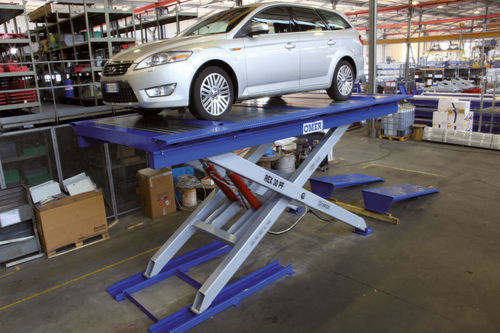

Car lifting platform REX PF

maintenancefor industrial useprofessional

Rex PF is a pantograph (scissor) car parking lift designed for cars and goods, offering a compact and cost-effective solution for parking operations. It is suitable for long-wheelbase vehicles and cars with heavy front sections while providing reliable, serviceable components.

Construction and platform

• Platform built from galvanized panels with a low profile to enable compact installation and reduced pit depth.
• Front and rear wheel stops are integrated to ensure correct vehicle positioning and to prevent forward movement during platform travel.
• The underside of the platform is supported by a steel skeleton for increased structural reliability; side platform profile width can be adjusted to adapt support area to customer vehicles.

Hydraulic system and safety

• Hydraulic lift powered by two pistons (manufactured by O.ME.R.), each fitted with a differential valve to monitor oil pressure differences.
• Safety solenoid valve isolates the piston from the hydraulic circuit in case of major pressure loss to prevent uncontrolled oil escape.
• Platform travel is regulated by two limit switches and a third independent limit switch is fitted as a safety backup for redundancy.

Installation and maintenance

• Junction box connecting the machine to the electrical control panel is mounted on the lower spacer of the fixed‑point leg for easy access.
• Electrical circuit and required systems are preinstalled on the unit to simplify and speed up site installation; the circuit remains accessible for maintenance.
• Sliding bases of the legs and the fixed frame base are anchored to the ground with mechanical anchors; wheels and pins use wear‑resistant plastic bushings to reduce friction and extend service life.

Technical specifications

• Model name: Rex PF
• Maximum capacity: 3,000 Kg
• Platform length: 5,200 mm
• Maximum lifting/travel (single scissor): up to 3.5 m
• Required pit depth: 510 mm
• Platform construction: galvanized panels, low profile
• Support structure: steel skeleton under the platform
• Vehicle stops: front and rear wheel stops (standard)
• Hydraulic: two pistons with differential valves and safety solenoid isolation valve
• Safety: two travel limit switches plus a third backup limit switch
• Anchoring: mechanical anchors for sliding bases and fixed frame
• Wear components: wheels and pins with wear‑resistant plastic bushings
