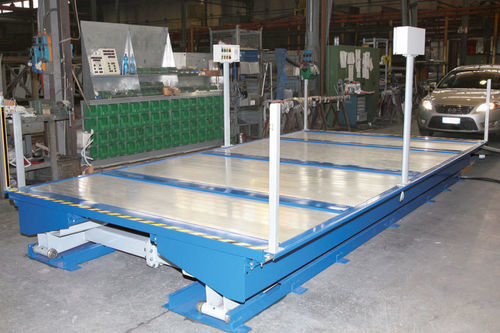

Hydraulic car lift TOTALREX

electricgaragefor parking lots

A secure pantograph car parking lift designed to allow a person to remain on-board while the vehicle is moved. Control panels are placed on the platform so the driver can operate the lift from the vehicle.

Key features and operation

• Versions allowing a person on-board, suitable for travel distances under 4 m or when wall anchoring is not possible.
• Driver-accessible controls located on the platform so the driver can operate the lift through the vehicle window while seated.
• Platform can be used both as a car parking lift and as a goods lift depending on configuration.

Safety systems

• Wheel stops fixed to the platform to prevent vehicle oscillation and ensure stability on-board.
• Photoelectric barriers on the platform's short sides that automatically stop and block movement on contact to protect vehicle and surroundings.
• Photocell and receiver housed in a galvanized iron structure to protect transmission systems and electrical connectors.

Controls and electrical protections

• Pushbutton panel on the platform reachable by the driver and floor pushbutton panels with safety keys to prevent unauthorised use.
• Pushbutton panel includes floor selection, emergency stop buttons and an interphone for platform communication; protection rating IP65.
• Electrical and control wiring routed through aluminium ducts to prevent deterioration and tampering.
• Telephone dialer in the electrical panel supports repeat-dial up to seven numbers and 22 country codes for network adaptation.
• Magnetic sensor for motorized door control, configurable from the control unit.

Drive unit and maintenance

• Compact electric-hydraulic drive and control unit requiring minimal space for installation.
• Dedicated maintenance panel allows the operator to move the unit for access in special circumstances.

Characteristics / specifications

• Brand: O.ME.R. S.p.a.
• Model: Totalrex
• Type: Pantograph car parking lift (person on-board versions available)
• Recommended travel for on-board option: < 4 m
• Controls: platform-mounted pushbutton (driver-reachable), floor pushbutton panels with safety keys, interphone on platform
• Pushbutton panel protection: IP65
• Safety: wheel stops, photoelectric barriers, protected photocell, magnetic door sensor
• Electrical routing: aluminium ducts for protection
• Telephone dialer: repeat-dial up to 7 numbers, 22 country codes
• Drive unit: compact electric-hydraulic unit
• Maintenance: dedicated maintenance panel for operator access
