Car lifting platform REX GOLD

loadingfor domestic usefor industrial use

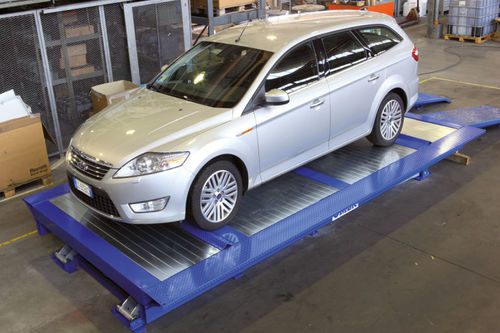

Rex Gold is a scissor (pantograph) lifting platform designed for vehicles and goods, offering symmetric lifting, compact installation options and service-oriented accessibility. Available configurations provide up to 4.10 m lift height and capacities from 3,000 kg (standard) up to 4,000 kg.

Overview

• Pantograph (scissor) lifting system usable as a car parking lift or goods lift; roof version available.
• Symmetric lifting with up to four mobile support points on the platform; load centering is not always required.
• Platform and structure fully galvanized to improve resistance to weather and external factors.

Main components and construction

• Two central hydraulic pistons mounted on the mobile leg structure; pistons manufactured by O.ME.R. S.p.a.
• Cylinders joined at a fixed central connection and routed to the hydraulic system; a bar on the left piston carries three adjustable limit switches (two top, two lower and one safety).
• All hydraulic and electrical connections run along the legs, preinstalled and protected by a catenary system to avoid forced bending or damage.
• Legs slide on two continuous grooves fixed to the ground with mechanical anchors; bases shaped to prevent leg wheel disengagement under uneven conditions.
• Hydraulic pistons include differential pressure valves; parachute valves immediately lock the platform in case of abrupt pressure drop or oil leak.
• Electro-hydraulic unit (pump and oil tank) integrated with the electric control panel for a compact assembly.
• Flanged upper beam option available to allow delivery in parts for shaft installation where space is limited.
• Auxiliary lever centers the legs vs. the central axis to increase safety and prevent lateral disengagement.
• Platform composed of galvanized panels supported by a steel skeleton for lightness and strength.
• Pushbutton control panel includes movement buttons, mushroom emergency stop and activation key.

Safety, accessibility and maintenance

• Parachute valves and differential pressure valves protect against sudden hydraulic failures and lock the platform when necessary.
• Speed control valves and a pressure gauge for operating pressure, with easy access to the hydraulic block, simplify maintenance and interventions.
• Front and rear platform stops (standard) ensure correct vehicle positioning and prevent abrupt forward movement during operation.

Technical specifications

• Maximum lift height: 4.10 m (REX Gold 30 variant)
• Standard load capacity: 3,000 kg (upgradeable to 4,000 kg)
• Typical total weight (REX Gold 30): 4,000 kg
• Required pit depth (REX Gold 30): 51 cm
• Platform material: fully galvanized panels with underlying steel skeleton
• Lifting system: pantograph / scissor with up to four mobile support points (REX Gold 30)
• Hydraulics: two central double-effect pistons with external valves and parachute safety valves
• Limit switches: adjustable assembly with multiple top/lower/safety switches
• Hydraulic unit: electro-hydraulic pump and oil tank integrated with the electric control panel
• Installation options: flanged upper beam for shaft assembly; roof version available
