Hydraulic car lift MOVE 30L

mechanicalbuildingcolumn type

Overview
The Move 30L is a car parking platform lift with both lifting columns placed along one long side of the platform to maximise usable area. It combines hydraulic pistons and mechanical floor-locking devices and is designed for integration into existing buildings without major civil works.

Key functional description

• Two lifting columns with two pistons under the platform, shoulder-guides and a torsion bar with positional rack.
• Mechanical floor-locking pistons controlled by an "all out / all in" limit switch to verify correct locking position.
• Limit switches manage deceleration and travel regulation with differing cam lengths for regulation and stop functions.
• Front and rear wheel stops ensure correct vehicle positioning and prevent movement during platform travel.

Operational and construction details

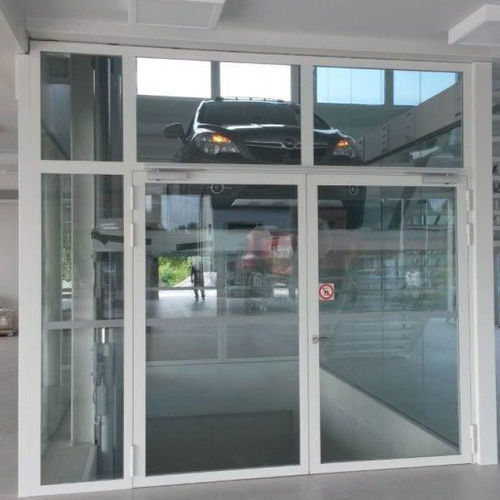

• Product photos show the unit in maintenance configuration; doors can only be opened when the platform is at floor level.
• Maximum travel protrusion (piston assembly, shoulder-guide and lock): 1618 mm. Standard pit depth: 215 mm; for a protrusion-free shoulder-guide the pit depth must be 1715 mm.
• Columns fixed to the wall using prewelded plates and chemical anchors; pulley and chain connections include external protection to prevent chain exit.
• Mechanical locking permits the shoulder-guide to rest on the locking piston and allows hydraulic pistons to return to unpressurised position, reducing continuous stress on the hydraulic circuit.
• Torsion bar with notched pinion engages a rack (one per column); supports are adjustable to ensure correct mesh.

Technical specifications

• Commercial name: Move 30L
• Brand: O.ME.R. S.p.a.
• Column arrangement: both lifting columns on one long side of the platform
• Piston/guide protrusion at max travel: 1618 mm
• Standard pit depth: 215 mm (protrusion-free option: 1715 mm)
• Mechanical locking: floor-locking pistons controlled by an "all out / all in" limit switch
• Limit switches: deceleration/travel regulation and stop limit switch with different cam lengths
• Column anchoring: prewelded plates and chemical anchors
• Torsion bar: notched pinion engaging rack; adjustable supports
• Vehicle safety features: front and rear wheel stops
