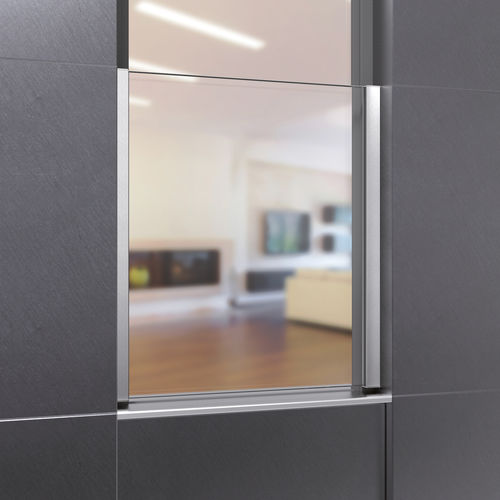

Aluminum railing P-01
glass paneloutdoorfor windows

aluminum railing
aluminum railing
aluminum railing
aluminum railing
aluminum railing
aluminum railing
aluminum railing
Add to favorites
Compare this product


Characteristics

Material
aluminum
Configuration
glass panel
Location
outdoor
Applications
for windows

Description

French chic with German perfection Protecting a floor-level window/door area directly at the facade, also known as a “French balcony”, can be very elegantly achieved by combining glass and stainless steel brackets. Safety is also assured with point fixings from Pauli + Sohn. Our products are type-tested, greatly simplifying planning and implementation. Glass width (B) = Outer dimension of the crash proof glazing minus 70 mm = Axial dimension minus 32 mm Glass height (H) = Profile length minus 7 mm Axial dimension (A) = Center screw to center screw Profile length (P) = Glass height (H) plus 7 mm All systems have a concealed mounting assembly • TYPE P-01 and P-03 suitable for frame and wall mounting Incl. fastening components - self tapping screw Ø 6,3 x 75 mm, form K, stainless steel, amount depending on profile length • For window frames made of steel-reinforced plastic • For plastic / aluminium composite windows with steel reinforcement For almost all installation situations, special solutions are easily implemented. Often the use of longer screws is sufficient .For example, guide rails for shading or screens. Also the attachment to substructure made of steel or aluminium profiles can be realized within the scope of the National Technical Certification.
