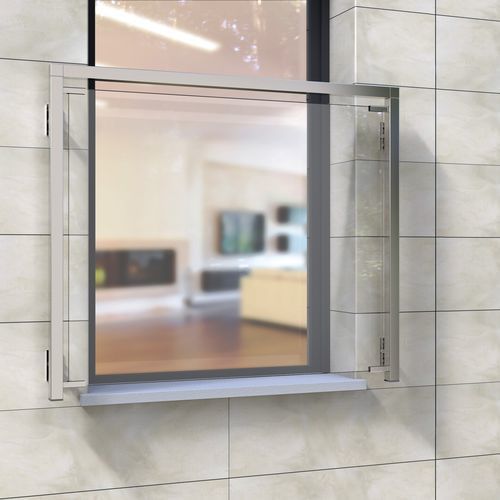

Metal railing CP-MINI 01/02

glassglass paneloutdoor

During the planning process, you are able to choose between different variations of the glass fixation. Certified systems with profiles, point fixations or clamps cover the different requirements concerning design. Moreover, we are pleased to offer our consulting service in order to find the perfect connection to the existing local structure. • all systems have a concealed mounting assembly • type P-01 and P-03 suitable for frame and wall mounting • model P-02 for the window jamb • suitable for all common window systems • TYPE P-03 includes a middle connector profile set to expand P-01 and P-02 • Bis 2200 mm Glasbreite möglich • Punkthalter Ø 52 mm und Ø 72 mm • Geregelt über AbP nach DIN 18008 • Edelstahl • Vorgesetzte Variante • glass widths up to 2200 mm possible • point fixtures Ø 52 mm and Ø 72 mm • controlled by *AbP according to DIN 18008 • stainless steel • front mounted variants
