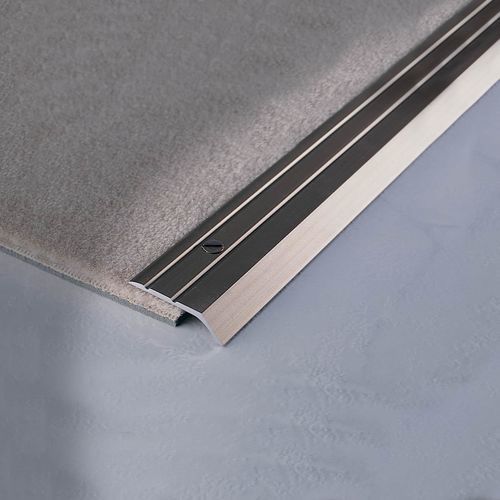

Anodized aluminum transition profile LEVELTEC RP

brassstainless steelfor tile

Overview
LEVELTEC RP is a series of transition profiles designed to provide a terminal or connecting function between floor coverings of different materials and thicknesses. Profiles conceal chipped ceramic edges and imperfect cuts of wood or carpet floors. Available heights range from 4.5 to 12.5 mm and allow compensation of level differences from 3 to 14 mm. Standard supply is with a high-sealing self-adhesive; drilled/pre-drilled versions for mechanical fixing are also available.

LEVELTEC RP: transition profile in different dimensions
Smooth and grooved LEVELTEC RP profiles are offered in multiple widths and heights to create flush, safe transitions between floors at different elevations. Sectional thickness and edge detailing make the profiles suitable for high-traffic areas and ensure correct contact with the floor surface.

How to install

• Installation of self-adhesive version: Ensure the substrate is solid, flat, clean and dry. Cut the profile to the required length and remove the adhesive backing. Press evenly to bond; do not hammer.
• Installation of drilled/pre-drilled version: Cut profile to length, mark hole positions if required and fasten with appropriate flathead screws and dowels.

Materials and finishes available
Stainless Steel 304 (AISI 304) - Polished
BxH (mm) | Art. | Installation
5 x 29 | RP 50 ILA | Self-Adhesive
8 x 34 | RP 80 ILA | Self-Adhesive
11 x 38 | RP 110 ILA | Self-Adhesive
5 x 29 | RP 50 ILF | Drilled
8 x 34 | RP 80 ILF | Drilled
11 x 38 | RP 110 ILF | Drilled

Aluminum - Anodized (available finishes: Silver AS*, Gold AO*, Bronze AB*)
BxH (mm) | Art. | Color | Installation
5 x 31 | RP 50 ASA | Silver | Self-Adhesive
8 x 34 | RP 80 ASA | Silver | Self-Adhesive
5 x 31 | RP 50 AOA | Gold | Self-Adhesive
8 x 34 | RP 80 AOA | Gold | Self-Adhesive
5 x 31 | RP 50 ABA | Bronze | Self-Adhesive
8 x 34 | RP 80 ABA | Bronze | Self-Adhesive
5 x 31 | RP 50 ASF | Silver | Drilled
8 x 34 | RP 80 ASF | Silver | Drilled
5 x 31 | RP 50 AOF | Gold | Drilled
8 x 34 | RP 80 AOF | Gold | Drilled
5 x 31 | RP 50 ABF | Bronze | Drilled
8 x 34 | RP 80 ABF | Bronze | Drilled

Brass - Polished
BxH (mm) | Art. | Installation
4.5 x 32 | RP 50 OLA | Self-Adhesive
8 x 34 | RP 80 OLA | Self-Adhesive
10 x 25 | RP 100 OLA | Self-Adhesive
12.5 x 45 | RP 125 OLA | Self-Adhesive
4.5 x 32 | RP 50 OLF | Drilled
8 x 34 | RP 80 OLF | Drilled
10 x 25 | RP 100 OLF | Drilled
12.5 x 45 | RP 125 OLF | Drilled

Notes on product family
Available in smooth and grooved profiles, multiple widths and heights to suit installation requirements. Versions: self-adhesive (high-sealing adhesive) and drilled/pre-drilled for mechanical fastening. Suitable for indoor applications and high pedestrian traffic depending on material selection.

Technical characteristics / specifications

• Series: LEVELTEC RP
• Function: terminal/connecting transition between floors of different material and thickness
• Profile heights available: 4.5 ÷ 12.5 mm
• Height difference compensation: 3 ÷ 14 mm
• Standard supply: self-adhesive with high-sealing adhesive
• Alternate fixing: drilled/pre-drilled for screws and dowels
• Materials: Stainless Steel AISI 304 (polished), Anodized Aluminum (Silver, Gold, Bronze), Polished Brass
• Versions: smooth and grooved; designed for correct floor contact and suitability in high-traffic areas
• Typical article codes / examples: RP 50 ILA, RP 80 ILA, RP 110 ILA, RP 50 ILF, RP 50 ASA, RP 80 ASA, RP 50 OLA, RP 80 OLA, RP 100 OLA, RP 125 OLA, RP 50 OLF, RP 80 OLF, RP 100 OLF, RP 125 OLF
