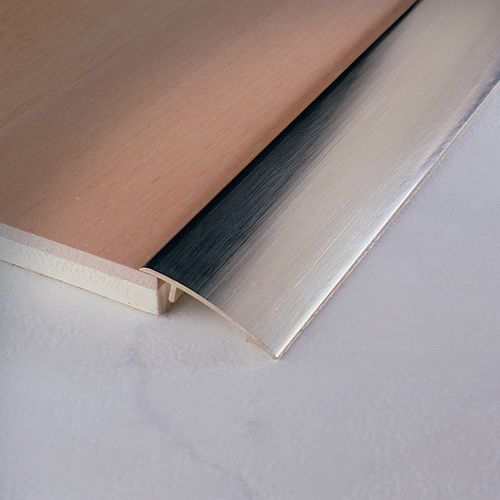

Anodized aluminum transition profile VARIOTEC DR

stainless steelbrassfor floor coverings

Description
VARIOTEC DR are profiles for transitions between already installed floors of different nature and level. Versions are available in anodized aluminum or polished brass and in some references stainless steel. They are supplied self-adhesive with a specific elastomer backing for easy and fast application. For correct installation remove the protective film from the adhesive, cut the profile to the required length and apply with uniform pressure. The substrate must be smooth, clean and dry to ensure proper sealing.

Materials and finishes available

• Aluminum (Variotec DR-A) — Anodized: available finishes silver (AS*), gold (AO*), bronze (AB*). Height H: from 7 to 13 mm.
• Brass (Variotec DR-O) — Polished Brass: solid brass rotating edge profile, resistant to mechanical and chemical stress and wear. Height H: from 7 to 13 mm.

Aluminum - Table (represented as lines)
B (mm) - Art. - Color - Installation
36 - DR 36 ASA - Silver - Self-Adhesive
36 - DR 36 AOA - Gold - Self-Adhesive
36 - DR 36 ABA - Bronze - Self-Adhesive

Brass - Table (represented as lines)
B (mm) - Art. - Installation
36 - DR 36 OLA - Self-Adhesive

Variants

• DR 36 ASA — Aluminum, Anodized (Silver), Self-Adhesive, B = 36 mm
• DR 36 AOA — Aluminum, Anodized (Gold), Self-Adhesive, B = 36 mm
• DR 36 ABA — Aluminum, Anodized (Bronze), Self-Adhesive, B = 36 mm
• DR 36 OLA — Brass, Polished (Brass), Self-Adhesive, B = 36 mm

Downloads

• Variotec DR - Datasheet (product datasheet / technical information)
• Technical drawings and CAD packages (available in various formats)

Technical characteristics / specifications

• Product family: VARIOTEC DR
• Denominations: Variotec DR-A (Anodized Aluminum), Variotec DR-O (Polished Brass)
• Materials: Anodized aluminum or solid polished brass (stainless steel mentioned in some references)
• Finishes (examples): Silver (AS), Gold (AO), Bronze (AB), Polished Brass
• Installation type: Self-adhesive (supplied with elastomer adhesive)
• Height (H): from 7 mm to 13 mm
• Available width (B) shown on page: 36 mm
• Typical article codes / variants: DR 36 ASA, DR 36 AOA, DR 36 ABA, DR 36 OLA
• Primary use: transition trims for floors of different nature and level, applied after flooring installation
• Application notes: cut to required length, apply with uniform pressure; substrate must be smooth, clean and dry for correct adhesion and sealing
