Brass transition profile Variotec DC

anodized aluminumfor floor coveringsfor floor

Product overview

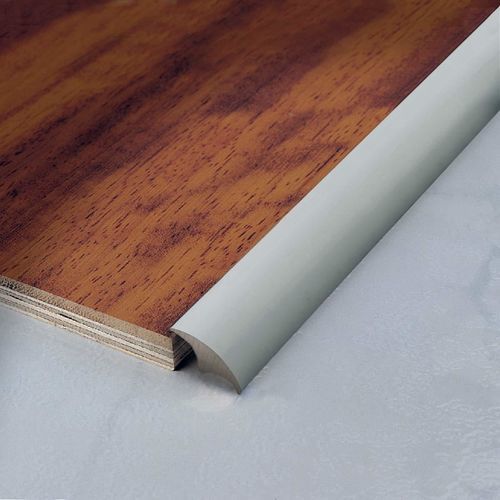

VARIOTEC DC profiles feature a half‑moon shape that rotates to adapt to different floor heights. By rotating the profile, it accommodates floor thicknesses from 7 to 14 mm while keeping a minimal visible surface. Designed for on‑site installation with adhesive; self‑adhesive versions are available.

Aluminum — Variotec DC-A
Available in three anodized finishes: Silver (AS), Gold (AO) and Bronze (AB). Recommended for residential/interior applications where chromatic coordination is required. Available in self‑adhesive and drilled versions. H = from 7 to 14 mm.

Aluminum — Available sizes / articles
22 — DC 22 AS — Silver
22 — DC 22 AO — Gold
22 — DC 22 AB — Bronze

Brass — Variotec DC-O
Polished brass finish (OL). Brass offers high resistance to mechanical and chemical stress and is suitable for indoor and outdoor applications, including heavy/industrial traffic zones and refined residential details. Exposed surfaces may oxidize on contact with moisture or corrosive agents; polishing restores the finish. H = from 7 to 14 mm.

Brass — Available sizes / articles
22 — DC 22 OL

Downloads & technical files
Product datasheet and technical drawings available.

Characteristics / technical specifications

• Adaptable height range: 7 mm to 14 mm (by rotating the profile)
• Installation method: adhesive for on‑site installation (self‑adhesive versions available)
• Materials: anodized aluminum (AS, AO, AB finishes) and polished brass (OL)
• Aluminum finishes: Silver (AS), Gold (AO), Bronze (AB)
• Available variants: self‑adhesive and drilled versions for aluminum
• Intended use: interior residential, also suitable for heavy/industrial traffic areas when in brass
• Typical article codes / sizes: DC 22 AS, DC 22 AO, DC 22 AB (Aluminum, B=22 mm); DC 22 OL (Brass, B=22 mm)
