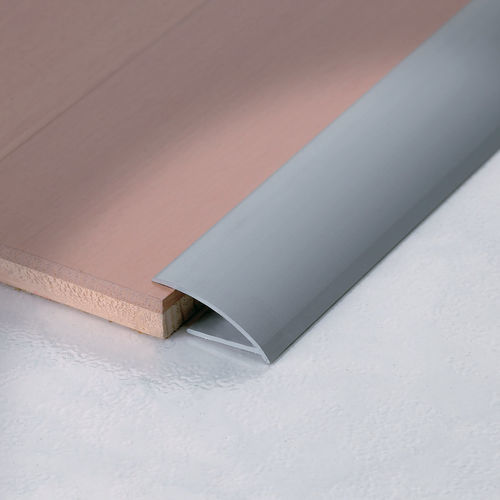

Anodized aluminum transition profile VARIOTEC LS

aluminumfor tilefor floor coverings

Product description
VARIOTEC LS is an aluminium perimeter edging profile designed to finish and protect edges and to compensate height differences between floors of different materials and thicknesses. It is suitable for transitions between floating floors and thinner coverings, providing a flush, protected junction between ceramic, wooden or laminate floors and carpets or vinyl.

Materials and finishes available
Variotec LS-A — Anodized aluminium
Crushing terminal for height differences from 7 to 13 mm. Supplied with adhesive on the underside for quick and durable installation. Height (H): 7–13 mm. Width (B): 30 mm.

Available items
B (mm) | Art. | Color | Installation
30 | LS 30 ASA | Silver | Self-Adhesive
30 | LS 30 AOA | Gold | Self-Adhesive
30 | LS 30 ABA | Bronze | Self-Adhesive

Downloads
Datasheet and technical drawings (mm and inches) available for VARIOTEC LS.

Technical characteristics / specifications

• Material: Aluminium (anodized finish)
• Function: Perimeter edging / transition profile to finish and protect edges between floors of different nature and thickness
• Application: Junction between ceramic, wood/laminate and thinner coverings such as carpet or vinyl
• Type: Crushing terminal for height differences
• Height (H): 7–13 mm
• Width (B): 30 mm
• Article codes and colors: LS 30 ASA (Silver), LS 30 AOA (Gold), LS 30 ABA (Bronze)
• Finish: Anodized
• Installation: Self-adhesive (adhesive on underside for fast and long-lasting fixing)
