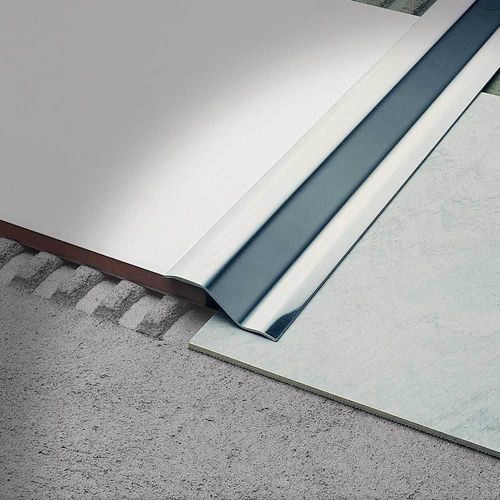

Anodized aluminum transition profile Variotec DK

stainless steelbrassfor floor

Overview
Especially conceived for residential and light commercial use, VARIOTEC DK profiles join different floor types with a height difference between 7 and 16 mm (9/32" to 5/8"). Profiles are self-adhesive: cut to length, remove the adhesive backing and press uniformly to install. Ensure the substrate is solid, flat, level, clean and dry.

Materials and finishes available

• Stainless Steel 304 - Polished (AISI 304 / DIN 1.4301)
• Anodized Aluminum (finishes: Silver AS, Gold AO, Bronze AB)
• Polished Brass

Stainless Steel 304 - Polished (examples)
B (mm) | Art. | Installation
37 | DK 37 ILA | Self-Adhesive
47 | DK 47 ILA | Self-Adhesive

Anodized Aluminum - (examples)
B (mm) | Art. | Color | Installation
37 | DK 37 ASA | Silver | Self-Adhesive
37 | DK 37 AOA | Gold | Self-Adhesive
37 | DK 37 ABA | Bronze | Self-Adhesive

Brass - Polished (examples)
B (mm) | Art. | Installation
37 | DK 37 OLA | Self-Adhesive
47 | DK 47 OLA | Self-Adhesive

Features and installation notes

• Application: transitions between different flooring types where height difference ranges from 7 to 16 mm.
• Typical variants: DK 37 (for H = 7–12 mm) and DK 47 (for H = 12–16 mm).
• Installation: self-adhesive system — cut to length, peel adhesive backing and press firmly.
• Recommended substrate: solid, flat, level, clean and dry.
• Intended use: interior transitions for residential and light commercial traffic.

Technical specifications

• Series name: VARIOTEC DK
• Height range: 7 mm to 16 mm (9/32" to 5/8")
• Materials: Stainless Steel 304 (AISI 304), Anodized Aluminum, Polished Brass
• Finishes: Polished (stainless steel, brass), Anodized (aluminum: Silver AS, Gold AO, Bronze AB)
• Examples of codes: DK 37 ILA, DK 47 ILA, DK 37 ASA, DK 37 AOA, DK 37 ABA, DK 37 OLA, DK 47 OLA
• Installation method: Self-adhesive
• Applications: interior floor transitions (tiles, LVT, wood, etc.)
