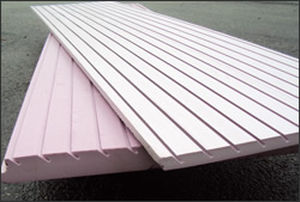

Thermal insulation FOAMULAR® PINK-DRAIN™

extruded polystyrenepanelwall

PINK-DRAIN™ board is a FOAMULAR® extruded polystyrene (XPS) product that incorporates the features of insulation, drainage, and protection board in a single, closed cell product for the exterior foundation wall. Its easy to install without the need for special tools or equipment and the products compressive strength and long-term moisture resistance properties mean years of reliable performance on below grade foundation walls even under extremely harsh conditions. Like all FOAMULAR® XPS products, FOAMULAR® PFD is highly resistant to moisture and permits the product to retain its high R-value year after year even after exposure to water, soil, condensation, and freeze/thaw cycling. Some of the main characteristics of FOAMULAR® PINK-DRAIN™ XPS are: Precision-cut channels drain water from vertical foundation walls while providing a continuous envelope of insulation. Channel design prevents soil from clogging channels assuring long-term performance. 24" x 96" size covers more square footage faster and minimizes joints between boards. Acts as protection course for waterproofing membrane. Shiplap edges assure continuous insulation coverage High R-value, exceptional moisture resistance and high compressive strength. Minimum compression strength of 30 psi. Available in thickness for R-10. UL Classified foam core meets ASTM C578 Type IV specifications. Owens Corning's FOAMULAR® extruded polystyrene insulation is an ENERGY STAR® qualified product.
