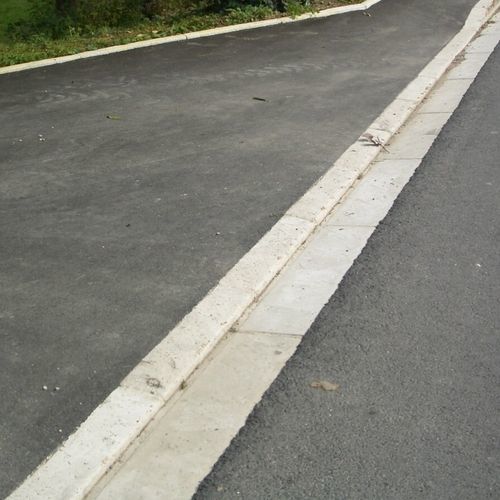

Stone drainage channel CS2

paving

DESCRIPTION
Drainage channel CS2 100×25 — stone-sawn finish, intended for exterior paving and drainage applications.

Appearance
Stone-sawn finish.
Selling unit (U) : lm (1 lm = 1 drainage channel)
Geometric dimensions (cm)

• Length: 100
• Width: 25
• Thickness (cm): 13.5–11
• Weight (kg/U): 82

Packaging : 18 U/pallet (single-use pallet 110×90)

MECHANICAL SPECIFICATIONS

• Splitting strength (MPa): 5.2
• Water absorption: < 6%
• Freeze/thaw resistance: 0.758 kg/m²
• Slip resistance: medium (62)
• Standard: NF – EN – 1340

INSTALLATION

• Follow the indications of standard NF P 98 335 and CCTG fascicle 29.
• Installation temperature: between +5°C and +30°C on a sound substrate.
• Mortars must be prepared or supplied as work progresses.
• Bed mortar must be leveled with a straightedge and applied progressively; target thickness ~4 cm and as uniform as possible.
• Panels should be dampened, especially in hot weather.
• Mix products from different packs to ensure color uniformity across the surface.
• Leave joints between units; grout joints not earlier than 24 h and not later than 72 h after laying. Joint width should be as small as possible but not less than 5 mm.
• Immediately after grouting, clean the surface to avoid residue or film on the slabs.
• Provide movement joints in accordance with normative requirements (10 lm or 20 m²).

MAINTENANCE

• Original colors are very stable and require minimal maintenance; natural patina may develop with time.
• Application of a mineralizing treatment will facilitate cleaning and help preserve the surface appearance.
• Do not use high-pressure cleaners or acidic products (risk of irreversible alteration).
• Use de-icing salts sparingly and avoid excess residual deposits.

COLOR RANGE
Sample range available showing stone-sawn and old-stone finishes.

Technical characteristics / specifications

• Model: Drainage channel CS2 100×25
• Appearance: stone-sawn / old stone
• Selling unit: lm (1 lm = 1 drainage channel)
• Length: 100 cm
• Width: 25 cm
• Thickness: 13.5 - 11 cm
• Weight: 82 kg / unit
• Packaging: 18 U / pallet (single-use pallet 110×90)
• Splitting strength: 5.2 MPa
• Water absorption: < 6%
• Freeze/thaw resistance: 0.758 kg/m²
• Slip resistance: medium (62)
• Standard: NF – EN – 1340
