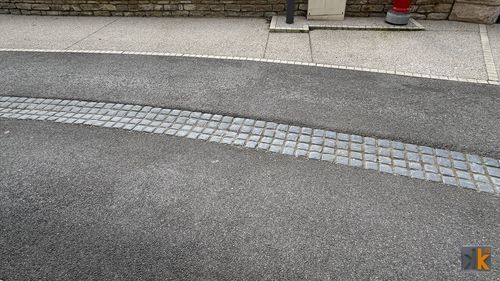

Paved drainage channel CC1

concretepaving

Description
Caniveau CC1 Empreinte pavés 44×44

• Finish: sawn stone / old stone appearance
• Unit of sale (U): m (linear metre)
• Equivalence: 1 m = 2 channels

Geometric specifications (cm)
length: 44
width: 44
thickness (cm): 12-9.5
weight (kg/U): 96
Packaging (U/pallet): 10.8 (one-way pallet 110×90)

Mechanical specifications
splitting strength (MPa): 5.2
water absorption: < 6%
freeze/thaw resistance: 0.758 kg/m²
slip resistance: medium 62
Standards: NF – EN – 1340

Installation

• The indications provided by standard NF P 98 335 and the CCTG leaflet 29 prevail.
• Installation is carried out between +5°C and +30°C on a sound substrate.
• Mortars are prepared or supplied as the work progresses.
• The mortar bedding is leveled with a straightedge and laid as work progresses. Its thickness should be as uniform as possible (~4 cm).
• Slabs should be moistened, particularly in hot periods.
• When laying, mix products of different colours or shades from different batches.
• Joints are left between slabs. Joints are filled with mortar not earlier than 24 h and not later than 72 h after laying. Joint width should be as small as possible but not less than 5 mm.
• Immediately after jointing, the pavement must be cleaned to avoid any film or deposit on the slab surfaces.
• Expansion joints must be provided in accordance with normative requirements (10 m linear or 20 m²).

Maintenance
Original colours are very stable. Minimal maintenance is required; patina will develop naturally. Applying a mineraliser will facilitate cleaning and prolong the original surface appearance. Use of high-pressure washers or acidic products is discouraged (risk of irreversible alteration). De-icing salts should be used sparingly, avoiding excessive stagnant residues.

Colour chart
Colour chart available for the sawn stone finish (visual associated on the product sheet).

Characteristics / technical specifications

• Model: Caniveau CC1 Empreinte pavés
• Finish: old stone / sawn stone
• Unit of sale: m (1 m = 2 channels)
• Dimensions (cm): L 44 × W 44
• Thickness: 12 - 9.5 cm
• Weight: 96 kg / U
• Packaging: 10.8 U / pallet (one-way pallet 110×90)
• Splitting strength: 5.2 MPa
• Water absorption: < 6%
• Freeze/thaw resistance: 0.758 kg/m²
• Slip resistance: medium 62
• Standard: NF – EN – 1340
