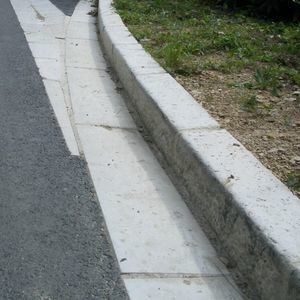

Paved drainage channel CC1

paving

Description

• Drain channel CC1 paving imprint 44×44
• Finish: sawn stone
• Unit of sale (U): lm (linear metre)
• Equivalent: 1 lm = 2 channels

Geometric dimensions
length: 44 cm
width: 44 cm
thickness (cm): 12 - 9.5
weight (kg / U): 96
Packaging (U / pallet): 10.8 (disposable pallet 110×90)

Mechanical properties
splitting tensile strength (MPa): 5.2
water absorption: < 6%
freeze/thaw resistance: 0.758 kg/m²
slip resistance: medium 62

Standards
NF – EN – 1340

Installation

• Provisions of standard NF P 98 335 and CCTG booklet 29 prevail.
• Install between +5°C and +30°C on a sound substrate.
• Morts should be prepared or supplied progressively as work advances.
• The bedding mortar must be levelled with a screed during installation; target uniform thickness ≈ 4 cm.
• Paving units should be moistened, especially in hot weather.
• When laying, mix units from different packs to even out colour/nuance variations.
• Joints must be left between units; fill joints with mortar no sooner than 24 h and no later than 72 h after laying.
• Minimum joint width: 5 mm (as narrow as geometry allows).
• Clean the surface immediately after jointing to avoid film or deposits on the units.
• Dilatation joints must be provided according to normative requirements (every 10 lm or 20 m²).

Maintenance

• Original colours are very stable; minimal maintenance required.
• Applying a mineral protector eases cleaning and prolongs surface appearance.
• Do not use high-pressure cleaners or acidic products (risk of irreversible damage).
• Use de-icing salts sparingly, avoiding excessive stagnant residues.

Colour chart
Colour chart available (visual reference displayed on the product page).

Technical characteristics / specifications

• Product reference: Caniveau CC1 Empreinte pavés
• Finish: sawn stone / old stone appearance
• Unit of sale: lm (linear metre) — 1 lm = 2 channels
• Dimensions (cm): L 44 × W 44
• Thickness: 12 - 9.5 cm
• Weight: 96 kg / U
• Packaging: 10.8 U / pallet (disposable pallet 110×90)
• Splitting tensile strength: 5.2 MPa
• Water absorption: < 6 %
• Freeze/thaw resistance: 0.758 kg/m²
• Slip resistance: medium 62
• Standard: NF – EN – 1340
• Recommended installation range: +5°C to +30°C
• Recommended bedding: mortar, thickness ≈ 4 cm
• Minimum joint width: 5 mm
• Dilatation joints: every 10 lm or 20 m²
