Water storage tank ROBOX 5000

closedin-ground

Presentation

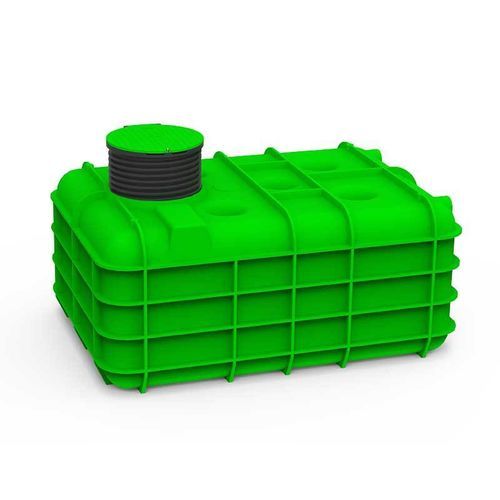

Robox 5000 is a flat water storage tank by Roterra with a capacity of 5,000 L. The product page includes installation photos and an installation video to support professional deployment.

Base equipment

• COVER DN600 WITH DN600 TELESCOPIC EXTENSION (base equipment code: 7600088710)

Cover
The Roterra tank cover is fitted with a sealing gasket. It is mounted on hinges and secured with a threaded fastener for straightforward opening and maintenance access.

Telescopic extension
The telescopic riser uses a screw-adjustment system allowing quick and precise height adjustment during installation. Riser dimensions: 600 x 400 mm.

Installation
The flat bottom design simplifies site preparation and enables fast, reliable installation.

Reinforcement ribs
Integral reinforcement ribs provide structural stability and protect against deformation caused by soil pressure.

Visuals and installation
The product page contains multiple in-situ photos and assembly views, plus an integrated installation video.

Tank dimensions Robox 5000
Volume [L] | Code | Dimensions A x B x C [mm] | Inspection opening [mm] | Total weight [kg]
5,000 | 7100072290 | 2690 x 1890 x 1200 | Ø600 | 200

Characteristics / technical specifications

• Volume: 5,000 L
• Product code: 7100072290
• Dimensions (A x B x C): 2690 x 1890 x 1200 mm
• Inspection opening: Ø600 mm
• Total weight: 200 kg
• Base equipment: COVER DN600 WITH DN600 TELESCOPIC EXTENSION (code: 7600088710)
• Telescopic extension: screw system, elevation 600 x 400 mm
• Cover: sealing gasket, hinged mounting and threaded fastener for easy opening
• Bottom: flat for simplified installation
• Reinforcements: ribs for stability and resistance to soil pressure
• Visuals: installation photos and in-situ views available
• Installation video integrated
