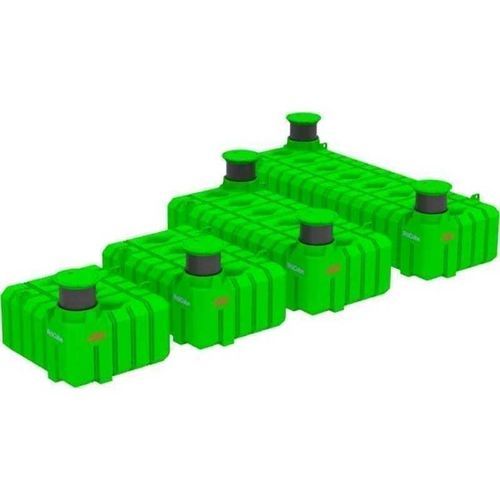

Drinking water storage tank ROCUBE

water storagerainwaterunderground

Presentation
RoCube is a range of polyethylene (PE) tanks designed for rainwater collection and recovery. Engineered for installation beneath pavement surfaces, the range includes self-supporting potable-water solutions, storage tanks and tanks adapted for fire-fighting reserves.

Applications

• Rainwater collection and recovery
• Installation under pavement surfaces (traffic areas)
• Self-supporting potable water tanks
• Storage tanks and fire-fighting reserves

Equipment available

• Flap cover – ref. 7100520380
• Cylindrical riser Ø600 x 500 – ref. 7100000010
• Cylindrical riser Ø600 x 800 – ref. 7100000011
• Filter – ref. 7100062480
• Garden kit – ref. 7100062660
• DN110 seals – ref. 1280304
• Gutter inspection chamber I – ref. 7100520080
• Parallel connection for PE 100 tanks – ref. 7100291400
• Series connection for PE 100 tanks – ref. 7100291420
• RoPetrol cover DN600, LTŽ with frame – ref. 1280431
• Basic liquid level gauge – ref. 7100065560
• Profi liquid level gauge – ref. 7100063220
• Sanitary water filter on distribution network – ref. 7100065490
• UV disinfection filter on distribution network – ref. 7100092810

Model table
Volume [L] | Reference | Dimension A x B x C [mm] | Inspection opening [mm] | Weight [kg]
5,000 | 7100069440 | 2425 x 2150 x 1450 – 1850 | Ø600 | 250
7,500 | 7100069450 | 3225 x 2150 x 1450 – 1940 | 2x Ø600 | 450
10,000 | 7100069460 | 4725 x 2150 x 1450 – 1940 | 2x Ø600 | 500
15,000 | 7100069430 | 6625 x 2150 x 1450 – 1940 | 2x Ø600 | 755

Advantages

• Suitable for installation under pavement (solutions adapted to traffic areas)
• Possible self-supporting design for potable water
• 100% watertight cylindrical riser
• Inclination adjustment up to 5° (on certain risers)
• Easy adjustment of ground-level height
• Excellent static behavior (reduced pressure distribution on cavity)
• Possibility to install PP covers
• Smooth internal surfaces facilitating inlet/outlet, hygiene and cleaning

Characteristics / technical specifications

• Available capacities: 5,000 L, 7,500 L, 10,000 L, 15,000 L
• Product references: 7100069440 (5,000 L), 7100069450 (7,500 L), 7100069460 (10,000 L), 7100069430 (15,000 L)
• Dimensions (A x B x C) per model: see model table above
• Inspection opening: Ø600 mm or 2x Ø600 mm depending on model
• Empty weight: 250 kg (5,000 L), 450 kg (7,500 L), 500 kg (10,000 L), 755 kg (15,000 L)
• Available equipment and accessories listed in the Equipment available block
