Filtration tank ROCUBE

drinking water storagerainwaterwater storage

Overview
RoCube is a range of polyethylene storage tanks designed for collection, recovery and storage of water (rainwater, potable water depending on configuration, firefighting water). The tanks are designed for installation beneath roadway surfacing, buried installations and sites requiring inspection openings. The product is available in multiple volumes and dimensions, with accessories and complementary equipment to adapt to applications (garden, potable water, firefighting, vehicular traffic).

Applications & installation

• Installation beneath roadway surfacing (vehicle traffic).
• Rainwater harvesting and storage for domestic or industrial uses.
• Potable water tanks (specific versions and filtration/disinfection equipment available).

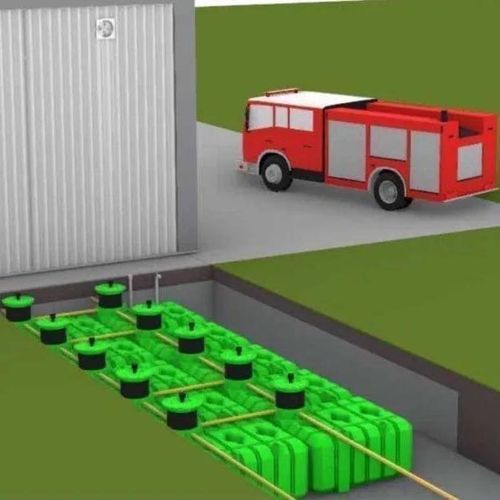

• Firefighting water reserves (self-supporting versions, series/parallel connections).

Benefits and functional features

• Self-supporting design suitable for buried installation under traffic.
• Smooth internal surface for improved hygiene and easier cleaning.
• Option to install cylindrical risers to adjust ground level and set slope (up to 5° depending on configuration).
• Wide range of optional equipment (covers, risers, filters, garden kits, gauges, UV disinfection units, etc.).
• Possibility of parallel or series connection of PE 100 tanks.

Volume table / references / dimensions
Volume [L] | Reference | Dimension A x B x C [mm] | Inspection opening [mm] | Weight [kg]
5000 | 7100069440 | 2425 x 2150 x 1450 – 1850 | Ø600 | 250
7500 | 7100069450 | 3225 x 2150 x 1450 – 1940 | 2x Ø600 | 450
10000 | 7100069460 | 4725 x 2150 x 1450 – 1940 | 2x Ø600 | 500
15000 | 7100069430 | 6625 x 2150 x 1450 – 1940 | 2x Ø600 | 755

Equipment & options (extract)

• Hinged cover – ref. 7100520380.
• Cylindrical riser Ø600 x 500 – ref. 7100000010.
• Cylindrical riser Ø600 x 800 – ref. 7100000011.
• Filter (for rainwater harvesting) – ref. 7100062480.
• Garden kit – ref. 7100062660.
• Seals DN110 – ref. 1280304.
• Gutter inspection chamber I – ref. 7100520080.
• Series/parallel connection accessories – ref. 7100291400 (parallel), 7100291420 (series).
• RoPetrol cover DN600 (with frame) – ref. 1280431.
• Level gauges – ref. 7100065560 (basic), 7100063220 (profi).
• Sanitary filter / UV filter for distribution – ref. 7100065490 / 7100092810.

Characteristics / technical specifications

• Commercial name: RoCube
• Brand: Roto Eco
• Material: polyethylene (PE) – self-supporting design
• Available volumes: 5000 L, 7500 L, 10000 L, 15000 L
• Product references: 7100069440, 7100069450, 7100069460, 7100069430
• Dimensions (A x B x C) and inspection access ranges indicated in the table above
• Inspection opening(s): Ø600 (single or double depending on version)
• Empty weight: see Weight column (e.g. 250 kg for 5000 L, 755 kg for 15000 L)
• Options: filters, cylindrical risers, covers, garden kits, gauges, UV units, connection accessories
• Applications: rainwater storage, potable water (adapted version), firefighting reserve, buried use under roadways
