Polyethylene domestic wastewater treatment plant VODALYS®

for public entityfor small community

Presentation
Vodalys® is an activated sludge microstation (aerated suspended growth) operating on the SBR (Sequencing Batch Reactor) process. It is designed to treat wastewater from single-family homes, communities (administrations, schools, etc.), hotels, restaurants, campsites and similar applications. The system is delivered ready to install and adapted to typical wastewater load levels. Air pressure hoses and the corresponding connections to the control unit are color-coded to prevent installation errors.

Advantages

• Ready-to-use system — very simple installation with color-coded components for easy connection.
• Vacation mode — ability to adjust cycle times or switch to vacation operation.
• Low maintenance costs — LCD indicates running hours; power-failure alarms; easily interchangeable components.
• Certified to European standard EN 12566.
• High performance ratings.
• No mechanical or electrical components inside the main tank.
• Low operating and servicing costs.

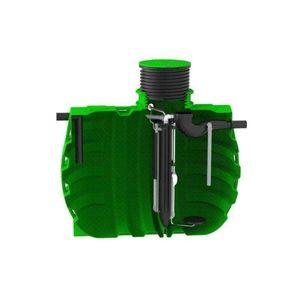

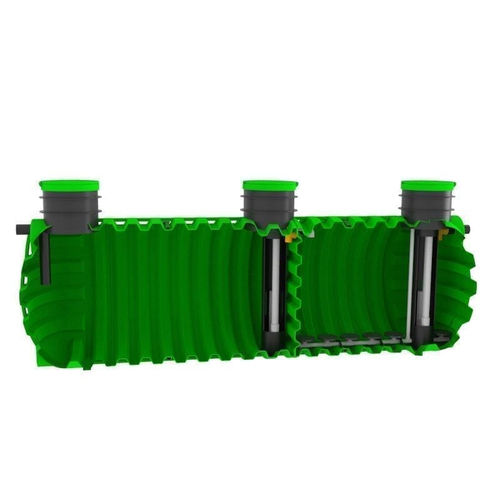

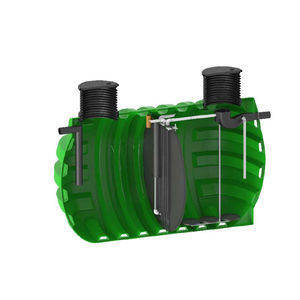

Main components (from visuals)

• Height adjustment (mechanical adjustment visible on the unit).
• Access cover with locking/access system.
• Inlet and outlet effluent connections (entry/exit points identified on the tank).
• PE tank with integrated baffle.
• Circular diffuser for aeration.
• Fan for the SBR reactor.
• Air pumps.
• Primary settlement basin (retention chamber).

Table of models and dimensions
Volume [L] | EH | Code | Dimensions A x B x C [mm] | Cover | Max inlet flow per day [m3/day] | Data sheet
25,000 | 75 | 7200063850 | 7370 x 2300 x 2350-2850 | 3x Ø800 | 12 | Vodalys-75_-Fiche-technique-FR.pdf
30,000 | 100 | 7200063840 | 6620 x 2450 x 2650-2950 | 2x Ø800 | 15 | Vodalys-100_-Fiche-technique-FR.pdf
40,000 | 150 | 7200063860 | 8600 x 2450 x 2650-2950 | 2x Ø800 | 23 | Vodalys-150-_Fiche-technique-FR.pdf
50,000 | 200 | 7200063870 | 10960 x 2450 x 2650-2950 | 3x Ø800 | 30 | Vodalys-200_-Fiche-technique-FR.pdf
65,000 | 300 | 7200063880 | 13600 x 2450 x 2650-2950 | 3x Ø800 | 45 | Vodalys-300_-Fiche-technique-FR.pdf

Technical notes and operation
The SBR process operates in sequences (fill, aeration, settling, decanting/drain). The unit is delivered ready for operation with color-coded connections. The control display allows adjustment of cycle times and monitoring of running hours. No mechanical or electrical equipment is submerged in the main tank, which simplifies maintenance and component replacement.

Characteristics / technical specifications

• Process type: SBR (Sequencing Batch Reactor) — activated sludge microstation (aerated suspended growth).
• Applications: single-family homes, communities, hotels, restaurants, campsites, etc.
• Tank material: polyethylene (PE) with integrated baffle.
• Cover options: different diameters (e.g. Ø800) and configurations depending on model.
• Ventilation: dedicated fan for the SBR aeration phase.
• Aeration: circular diffusers and air pumps.
• Maintenance: LCD monitoring, power-failure alarms, easily replaceable components.
• Compliance: certified EN 12566.
• Technical data sheets available for each model (see url_documents field for corresponding PDF files).
