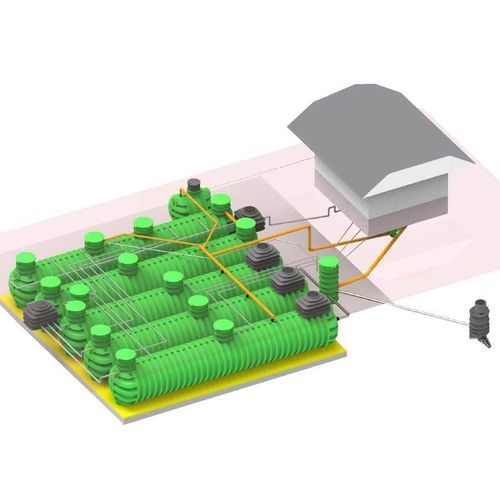

Roto-molded domestic wastewater treatment plant VODALYS COLLECTIF

polyethylenefor small communitywith pump

Optional equipment:

• remote monitoring (SCADA / telemetry)
• UV disinfection
• chemical dosing
• decanting pump
• containerised solutions
• flow measurement
• automatic bar screen
• grease separator
• dry sludge finishing
• lifting station
• sludge tanks
• pre-treatment modules
• primary treatment
• secondary (biological) treatment
• tertiary treatment
• odor control
• noise control
• energy consumption monitoring

Benefits of the 500–2000 EH treatment station:

• Fully automated operation with data collection
• Robust pre-treatment options
• Remote data access and control
• Cost-effective modular design
• Fast and simple installation

Dimensions table:
Volume [L] | EH | Dimensions A x B x C [mm]
2 x 50,000 | 500 | 2x (13490 x 2300 x 2300–2800)
4 x 50,000 | 1000 | 4x (13490 x 2300 x 2300–2800)
6 x 50,000 | 1500 | 6x (13490 x 2300 x 2300–2800)
8 x 50,000 | 2000 | 8x (13490 x 2300 x 2300–2800)

Features / technical specifications:

• Commercial name: Vodalys Collectif
• Series: Vodalys (collective)
• Capacity ranges (EH): 500, 1000, 1500, 2000
• Modular configuration (e.g., 2 x 50,000 L; 4 x 50,000 L; 6 x 50,000 L; 8 x 50,000 L)
• Dimensions per configuration: see table above (A x B x C in mm)
• Fully automated system with data collection
• Includes options for pre-treatment, primary / secondary / tertiary treatment
• Available complementary equipment: remote monitoring, UV, chemical dosing, pumps, containers, separators, flow meters, automatic bar screens, sludge finishing, sludge tanks, lifting stations, odor/noise/energy control
• Installation: fast and simple
• Designed for collective deployment (modular stations)
