Polyethylene (PE) domestic wastewater treatment plant VODALYS®

plasticwith pumpfor small community

Overview
Vodalys® is an activated-sludge micro wastewater treatment plant operating with the SBR (Sequencing Batch Reactor) process. It is designed to treat wastewater from single-family homes, community buildings (administrations, schools, etc.), hotels, restaurants, campsites and similar sites. Delivered ready to install with simple connections and color-coded fittings to avoid installation errors.

Main advantages

• Ready-to-use system with straightforward installation.
• Holiday mode: SBR cycle times adjustable according to usage conditions.
• Low operating and maintenance costs.
• LCD screen displaying operating hours and power-failure alarms.
• Certified to European standard EN12566.
• High performance rating.
• No mechanical or electrical components inside the tank (external components are easily replaceable).

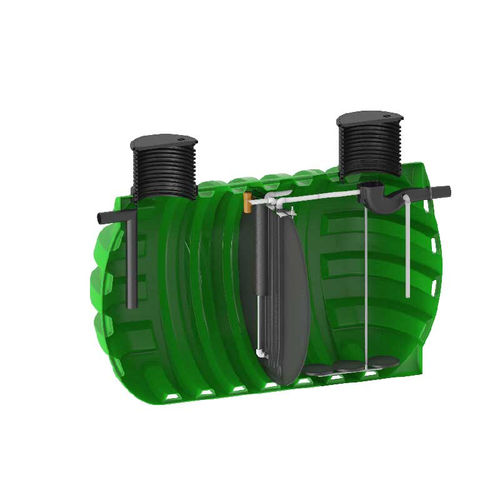

Internal elements / components

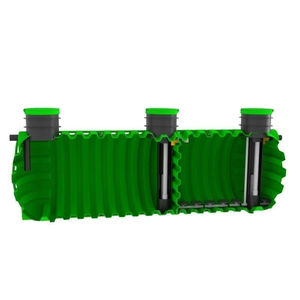

• Cover (with access elements).
• Telescopic riser.
• Inlet and treated-water outlet.
• Sampling receptacle.
• PE tank with integrated baffle.
• Circular diffuser.
• Fan for the SBR reactor.
• Air pumps.
• Primary settling basin (retention basin).

Dimensions table
Volume [L] | EH | Code | Dimensions A x B x C [mm] | Covers [mm] | Max inlet flow per day [m3/day] | Datasheet
12,000 | 21 | 7200063790 | 3760 x 2300 x 2350-2850 | 2 x Ø600 | 3 | Vodalys-21_-Fiche-technique-FR.pdf
16,000 | 30 | 7200063760 | 4840 x 2300 x 2350-2850 | 3 x Ø600 | 5 | Vodalys-30-_-Fiche-technique-FR.pdf
16,000 | 40 | 7200063820 | 4840 x 2300 x 2350-2850 | 3 x Ø600 | 6 | Vodalys-40-_-Fiche-technique-FR.pdf
22,000 | 50 | 7200063830 | 6280 x 2300 x 2350-2850 | 3 x Ø600 | 8 | Vodalys-50-_-Fiche-technique-FR.pdf

Technical characteristics / specifications

• Process: SBR (Sequencing Batch Reactor) activated-sludge, aerated suspended culture.
• Typical applications: single-family houses, community buildings, hotels, restaurants, campsites, etc.
• Certification: compliant with EN12566.
• Installation: delivered ready-to-use; color-coded connections (air pressure hoses and control connections coded) to reduce installation errors.
• Operating features: LCD display, logging of operating hours, power-failure alarm, adjustable cycle times (holiday mode).
• Maintenance: external components easily replaceable; low operating and maintenance costs.
• No mechanical/electrical components inside the tank.
• Available variants (summary):

  • Vodalys 21 EH — Volume 12,000 L — Code 7200063790 — Max flow 3 m3/day — Dimensions 3760 x 2300 x 2350-2850 mm — Datasheet: Vodalys-21_-Fiche-technique-FR.pdf
  • Vodalys 30 EH — Volume 16,000 L — Code 7200063760 — Max flow 5 m3/day — Dimensions 4840 x 2300 x 2350-2850 mm — Datasheet: Vodalys-30-_-Fiche-technique-FR.pdf
  • Vodalys 40 EH — Volume 16,000 L — Code 7200063820 — Max flow 6 m3/day — Dimensions 4840 x 2300 x 2350-2850 mm — Datasheet: Vodalys-40-_-Fiche-technique-FR.pdf
  • Vodalys 50 EH — Volume 22,000 L — Code 7200063830 — Max flow 8 m3/day — Dimensions 6280 x 2300 x 2350-2850 mm — Datasheet: Vodalys-50-_-Fiche-technique-FR.pdf
