Safety glass panel COOL-LITE® SKN 155 (II)

solar controlinsulatingthermal insulating

Summary
Solar control glass with high selectivity and a neutral aesthetic.

Description
Insulating glass units incorporating COOL-LITE® SKN 155 or SKN 155 II provide high solar protection. They block 73% of incoming solar heat while transmitting approximately 50% of visible light, offering a balanced compromise between solar control and natural daylight (selectivity ≈ 1.85). The neutral appearance and low external reflection integrate easily into various façade designs. Available in annealed and tempered versions. Typical composition: 6-16-4 with the coating on face 2.

Applications

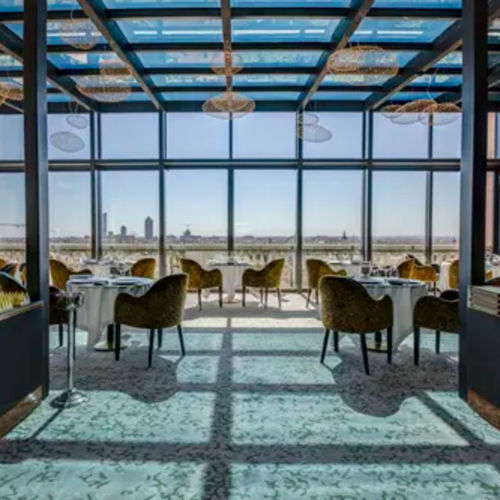

• Offices, hospitals, schools, sports centres
• Retail premises, restaurants
• Large glazed façades and south/west-facing openings
• Conservatories and roof glazing for year-round thermal comfort

Additional options

• STADIP® PROTECT: laminated safety glass to protect occupants and assets
• STADIP® SILENCE: laminated glass for acoustic reduction
• BIOCLEAN®: maintenance-easing coating (available only in laminated configuration, with BIOCLEAN® on face 1 and COOL-LITE® SKN on face 4)
• CLIMAPLUS® SCREEN: integrated blinds for improved visual comfort

Availability

• Monolithic glass: thicknesses 6, 8 or 10 mm
• Standard dimensions: 6000 x 3210 mm
• Substrates: PLANICLEAR® as standard, DIAMANT® on firm order, ORAÉ® for certain configurations
• Also available as laminated safety glass (from 44.2 up to 1010.2), in STADIP® PROTECT or STADIP® SILENCE versions

Benefits

• High solar protection (solar factor g = 0.27) limiting overheating and cooling demand
• Excellent thermal insulation (e.g. Ug = 1.0 W/m²·K in typical double glazing)
• Neutral appearance and low reflection (approx. 15% from outside)

Performance (example configurations)
Configuration columns: Double glazing 6’’(16)4 (substrate ORAÉ®) | Double glazing 6’’(16)4 (substrate PLANICLEAR®) | Double glazing 6’’(16)4 (substrate DIAMANT®) | Triple glazing 6’’(16)4(16)’’4 (with ECLAZ® LUMI on face 5, substrate DIAMANT®)
Visible light transmittance (TL) (%) : 50 | 50 | 51 | 47
External light reflection RLe (%) : 15 | 15 | 15 | 16
Internal light reflection RLi (%) : 12 | 12 | 12 | 15
Solar factor (g) : 0.27 | 0.27 | 0.27 | 0.25
Selectivity (TL/g) : 1.85 | 1.85 | 1.89 | 1.88
Thermal transmittance U (W/m²·K) : 1.0 | 1.0 | 1.0 | 0.5
Carbon footprint (Kg CO2 eq./m²) : 22.0 | 30.3 | 28.9 | 42.7

Instructions for use
COOL-LITE® SKN 155 and SKN 155 II must always be assembled into insulating glazing with the coating placed on face 2 (inside the IGU). Edge deletion of the coating is mandatory. COOL-LITE® SKN 155 II must always be tempered before IGU assembly. The product can be supplied with temporary surface protection for handling.

Technical characteristics / specifications

• Product name: COOL-LITE® SKN 155 (II)
• Standard composition: 6-16-4 with coating on face 2
• Visible light transmittance (TL): ~50%
• Solar factor (g): 0.27
• Selectivity (TL/g): ~1.85
• External light reflection: ~15%
• Internal light reflection: ~12%
• U-value (typical double glazing): 1.0 W/m²·K (indicative)
• Available annealed and tempered
• Available in laminated safety glass (STADIP® PROTECT / STADIP® SILENCE) from 44.2
• Standard dimensions indicated: 6000 x 3210 mm
• Substrates: PLANICLEAR®, DIAMANT®, ORAÉ® (depending on configuration)
• Carbon footprint (Kg CO2 eq./m²) by configuration: e.g. 22.0 ; 30.3 ; 28.9 ; 42.7
• Values given according to EN 673 and EN 410, calculated with argon fill (90% for doubles, 85% for triples)
