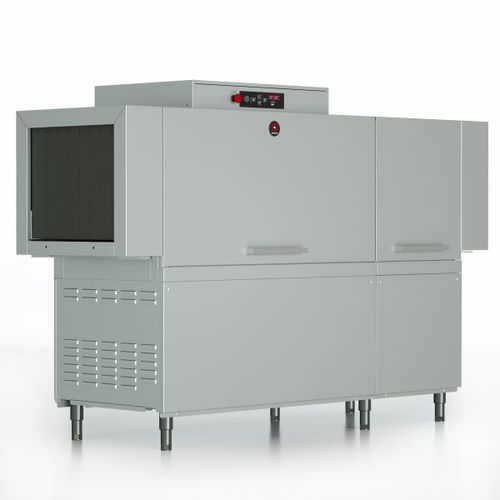

Conveyor dishwasher SRC-3600

commercial

Pre-washing + washing + rinsing. 2 speeds. Fully stainless steel jacket. Inlet and outlet splash guards are standard. Stainless steel central rack feed system. Process cycles are divided by rubber curtains. Automatic cycle start. Economy Energy saving rinse supply switch. Pressure controller in the rinse section to limit consumption. Programmed automatic stops if there is no loading. Stop and freezing of timer when the limit switch actuates. Cleaning and maintenance Wide pivoting door allowing access for cleaning or inspection purpose. Detachable arms and dispersers for easier cleaning. Sloped removable stainless steel filters with independent removable basket. Easy boiler emptying by loosening a hose. Failures are easily detected thanks to the warning lights. Easy to repair without moving the machine. Specifications Sheet Production Production baskets/hour: 130-200 Production plates/hour: 2340-3600 Pre-wash Temperature: 35 ºC - 45 ºC Pre-wash basin capacity: 60 l Pump: 1.2 Hp / 880 W Wash Temperature: 55 ºC - 65 ºC Wash tank capacity: 100 l Pump: 3.2 Hp / 2400 W Wash heating element: 9000 W Rinse Temperature: 80 ºC - 90 ºC Water consumption: 390 l/h Rinse heating element: 21000 W Boiler capacity: 20 l Drag Drag motor power: 0.25 Hp / 180 W Loading Total installed power: 33460 W External dimensions (WxDxH) Width: 2300 mm Depth: 829 mm Height: 1520 mm Net weight: 430 Kg Water Intake: 3/4 " Drain diameter: 1 1/2 " Noise level (1m.): 71 dB(A) Please note: +3kW rinse heating element in models equipped with steam condenser.
