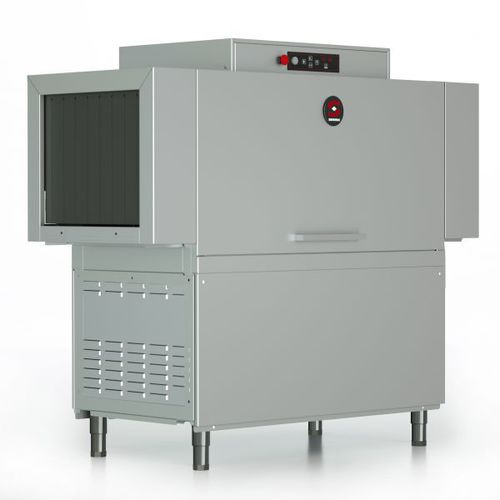

Conveyor dishwasher SRC-2200

commercial

Washing + rinsing. 2 speeds. Fully stainless steel jacket. Inlet and outlet splash guards are standard. Stainless steel central rack feed system. Process cycles are divided by rubber curtains. Automatic cycle start. Economy Energy saving rinse supply switch. Pressure controller in the rinse section to limit consumption. Programmed automatic stops if there is no loading. Stop and freezing of timer when the limit switch actuates. Cleaning and maintenance Wide pivoting door allowing access for cleaning or inspection purpose. Detachable arms and dispersers for easier cleaning. Sloped removable stainless steel filters with independent removable basket. Easy boiler emptying by loosening a hose. Failures are easily detected thanks to the warning lights. Easy to repair without moving the machine. Specifications Sheet Production Production baskets/hour: 85 / 126 Production plates/hour: 1530 / 2200 Wash Temperature: 55 ºC - 65 ºC Wash tank capacity: 100 l Pump: 3 Hp / 2250 W Wash heating element: 9000 W Rinse Temperature: 80 ºC - 90 ºC Water consumption: 300 l/h Rinse heating element: 18000 W Boiler capacity: 20 l Drag Drag motor power: 0.25 Hp / 180 W Loading Central module total power : 29580 W External dimensions (WxDxH) Width: 1700 mm Depth: 829 mm Height: 1520 mm Net weight: 250 Kg Water Intake: 3/4 " Drain diameter: 1 1/2 " Noise level (1m.): 71 dB(A) Electrical supply: 400V / 50 Hz / 3N 220V / 60 Hz / 3 440V / 60 Hz / 3 Please note: +3kW rinse heating element in models equipped with steam condenser.
