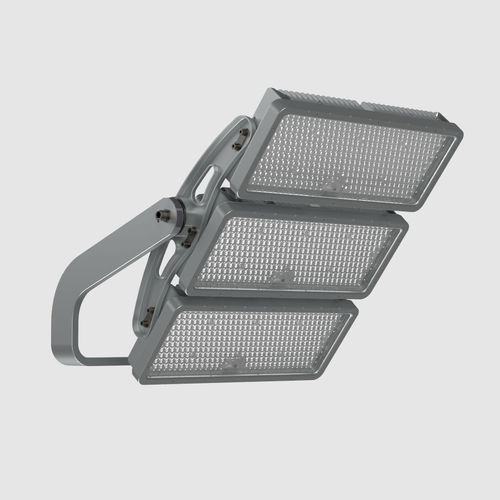

IP66 floodlight BRITELINE

LEDfor stadiumfor sports fields

Overview
BRITELINE is a modular high-power floodlighting platform engineered for sports venues and large-area applications. It integrates modular LED lighting units, advanced optics and realtime control compatibility to deliver broadcast-grade uniformity, ultra-low glare and scalable photometric distributions.

Applications

• Sports venues (stadiums, arenas, training fields)
• Large areas (logistics yards, terminals, industrial sites)
• Areas requiring broadcast-grade uniformity and low glare

Key features

• Modular photometric units with high-efficacy LED engines and precision optics to target light where needed while minimising glare.
• Available in three sizes (1, 2 or 3 adjustable lighting modules); each module can be aimed individually to fine-tune distribution.
• Compatibility with local and remote control systems for on-demand dimming, dynamic scenes and remote management.
• Compact, lightweight design to fit existing poles; optional one-bolt fixation for simplified installation.

Control options

• DALI-2 (D4i)
• DMX-RDM
• 0-10V (with remote driver option)
• Remote management
• Compatible with Schréder ITERRA wireless control solution

Installation & maintenance

• Adjustable bracket supporting top, side or under-mounted configurations with fine orientation at bracket and module level.
• Driver can be integrated on the bracket or positioned remotely at pole base to ease maintenance and reduce pole load.

Technical characteristics / Specifications

• Brand: Schréder
• Model / commercial denomination: BRITELINE GEN3
• Compliance: CE mark, ENEC certified, ROHS compliant, RCM mark
• Electrical class: Class I (EU)
• Nominal voltage: 200-480 VAC – 50-60 Hz
• Surge protection: 20 kV, 10 kV (options)
• Control protocols: DALI-2, DMX-RDM (0-10V available with remote driver)
• Socket options: Zhaga (optional), NEMA 7-pin (optional)
• Associated control system: Schréder ITERRA
• Luminaire output flux: 69,200 lm – 330,300 lm
• Power consumption: 620 W – 1,860 W
• Luminaire efficacy: up to 181 lm/W
• LED colour temperatures available: Warm White 730, 830; Neutral White 740, 840, 940; Cool White 757, 857, 957
• Colour Rendering Index (CRI): 70, 80, 90
• Upward Light Output Ratio (ULOR): 0% (may vary by configuration)
• Housing: Aluminium
• Optic: Polycarbonate (integrated lenses option)
• Protector: Tempered glass or Polycarbonate (with integrated lenses)
• Tightness level: IP66
• Impact resistance: IK10 (for optical unit with polycarbonate protector), IK08
• LED lifetime: 120,000 h - L96 (may vary with size/configuration)
• Dimensions (AxBxC): BRITELINE GEN3 1: 395 x 362 x 706 mm; GEN3 2: 645 x 395 x 707 mm; GEN3 3: 846 x 415 x 707 mm
• Weight: GEN3 1: 12.8–14.4 kg; GEN3 2: 20.5–23.8 kg; GEN3 3: 28.3–33.4 kg
• Mounting possibilities: Bracket enabling adjustable inclination; one-bolt fixation available
• Notes: ULOR, lifetime and optical performance may vary by configuration; consult technical datasheets for detailed configurations.
