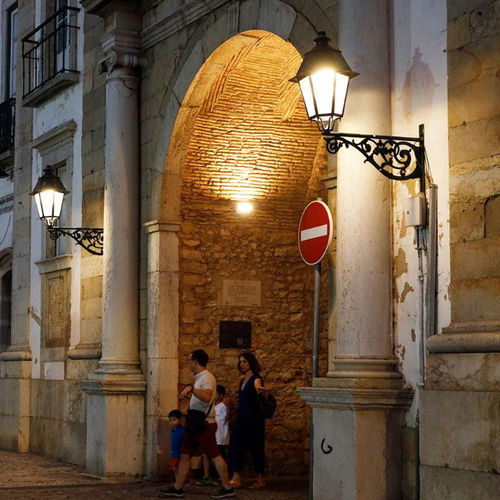

Traditional urban lantern CASCAIS GEN2

aluminumgalvanised steelglass

CASCAIS GEN2 is a classic urban lantern inspired by 19th-century gas lanterns that combines nostalgic design with modern LED technology, delivering energy efficiency and circular features. It is designed to complement historic, touristic and traditional urban landscapes while offering modern functionality and durability.

Applications

• Urban & residential streets
• Bridges
• Bike & pedestrian paths
• Railway stations & metros
• Car parks
• Squares & pedestrian areas

Key features

• Enhances historic authenticity of urban landscapes with a design reminiscent of historic gas lanterns, suitable for parks, historic town centres and landmarks.
• Classic-inspired aesthetic reimagined with modern, lightweight, recyclable materials such as aluminium and glass for robustness and durability.
• All-inclusive LED module integrating Schréder’s latest photometric engine and all electronic components in a single unit to ease access, replacement and interchangeability, optimising durability and circularity.
• Adaptive lighting capability via custom dimming profiles for optimal management of lighting levels throughout the day.

Control options

• 1‑10V
• DALI
• Custom dimming profile
• AmpDim

Mounting & installation

• Suspended mounting (bracket / arch type or hook)
• Post-top mounting for ¾’’ male threaded spigots

Technical specifications

• Recommended installation height: 3 - 7 m
• Compliance: CE mark; ROHS compliant
• Electrical class: Class I EU; Class II EU
• Nominal voltage: 220-240V – 50-60Hz
• Surge protection: 10 kV
• Control protocols: DALI; 1-10V
• Control options: AmpDim; Custom dimming profile
• Luminaire output flux: 1,100 - 9,600 lm
• Power consumption: 13 - 89 W
• Luminaire efficacy: up to 136 lm/W
• LED colour temperatures: Warm White 722, 727, 827, 730, 830; Neutral White 740; Cool White 757
• Colour rendering index (CRI): 70; 80
• Housing: Aluminium; Galvanised steel
• Optic: PMMA
• Protector: Polycarbonate
• Tightness level: IP66
• Impact resistance: IK08
• LED lifetime (all configurations): 100,000 h - L92
• Operating temperature range (Ta): -30°C up to +55°C / -22°F up to 131°F (with wind effect)
• Dimensions (AxBxC): 530 x 735 x 530 mm | 20.9 x 28.9 x 20.9 in
• Weight: 13.0 kg | 28.6 lbs
• Mounting possibilities: Suspended mounting; Post-top ¾’’ gas male
